3-10. MULTIPLE BYPASS (MB-5): OPTION
(1) Removal of the Separator Roll Assy
(2) Removal of the Paper Take-Up Roll

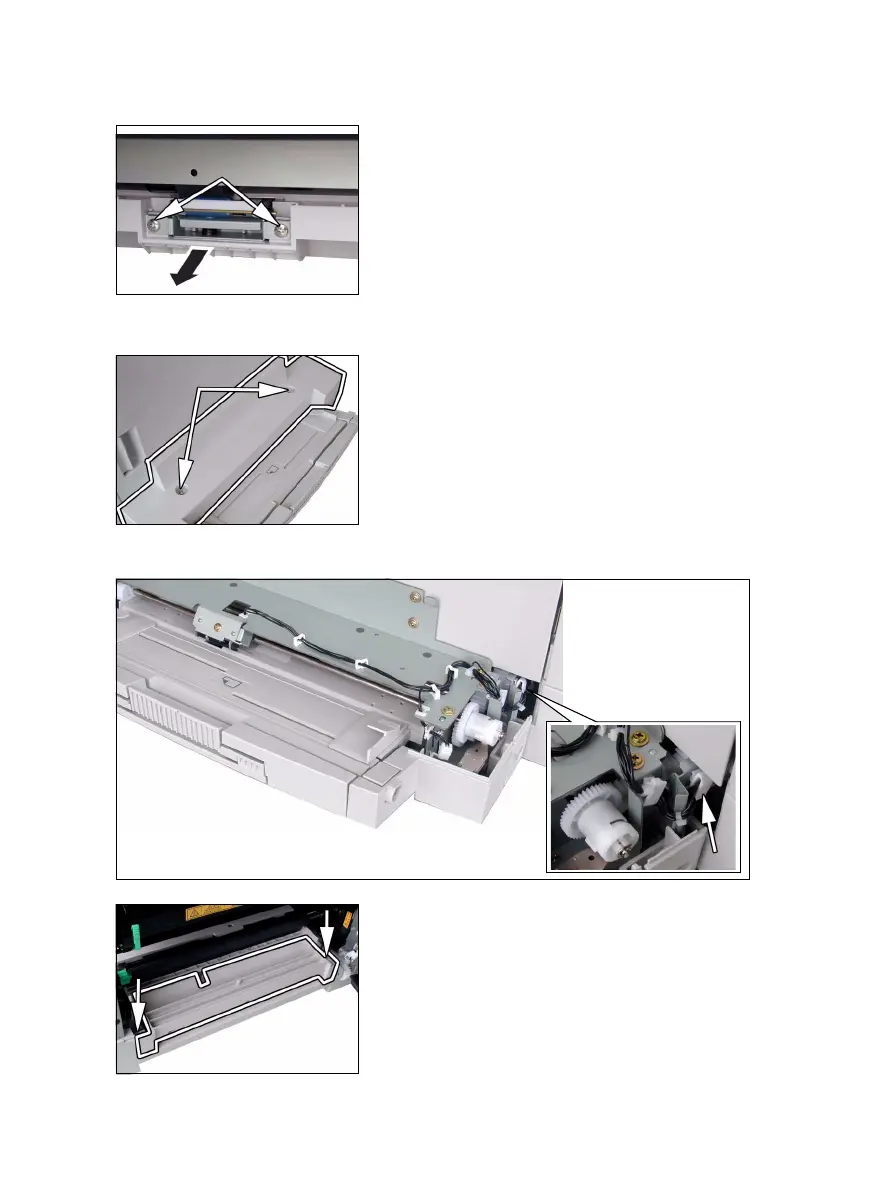

2. Remove the harness from one cord clamp.
1. Open the Right Door.
2. Remove two screws and the Separator Roll Assy.
1. Remove two screws and the cover.
3. Remove two screws and the Bypass Transport
Roller Assy.
