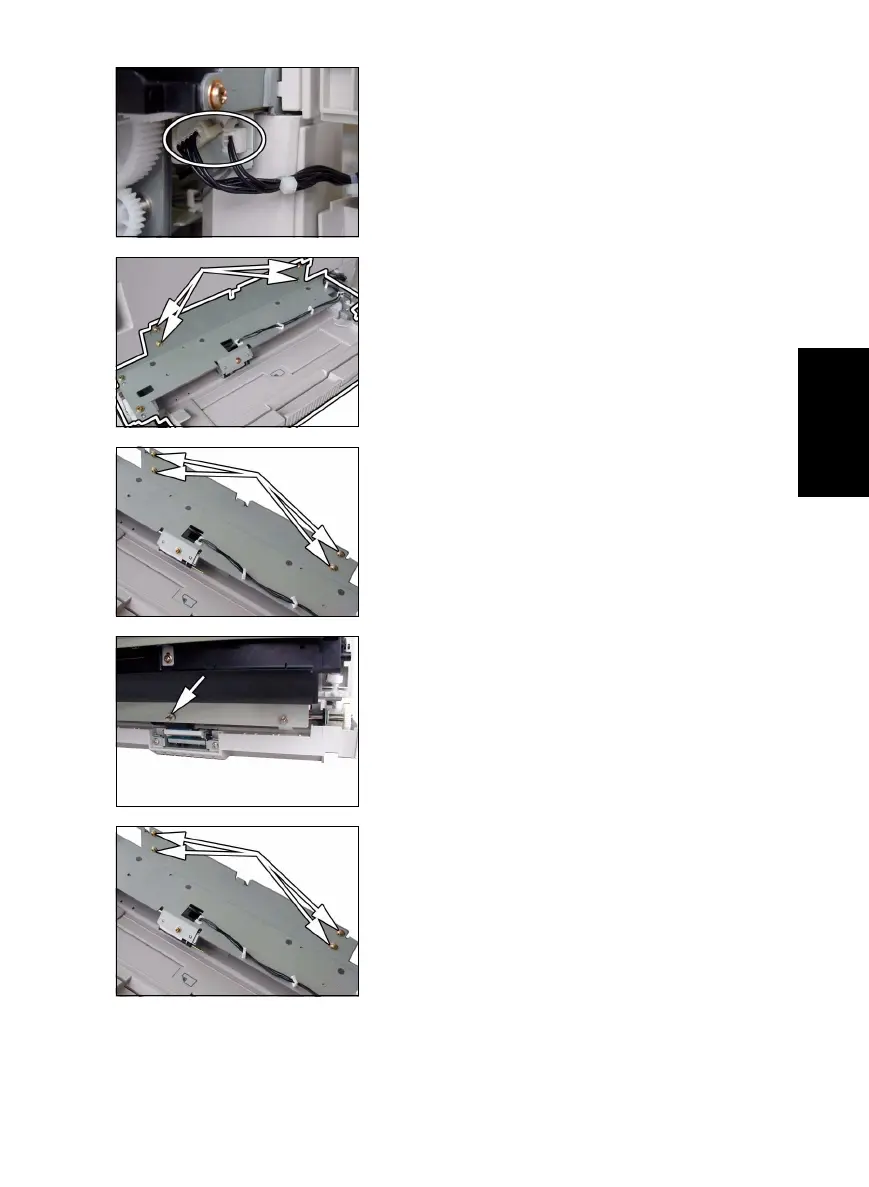

4. Unplug two connectors.
5. Remove four screws and the Multiple Bypass.
<<Multiple Bypass Installation Procedure>>
➀ Temporarily secure the Multiple Bypass using four
screws.
➁ Install the positioning pin at the location shown in
the illustration.
(Use the positioning pin furnished as an acces-
sory with the Multiple Bypass.)
➂ Close the Right Door and correctly position the
Multiple Bypass using the positioning pin.
➃ Tighten the four Multiple Bypass mounting screws
to specified torque.
To Next Page
