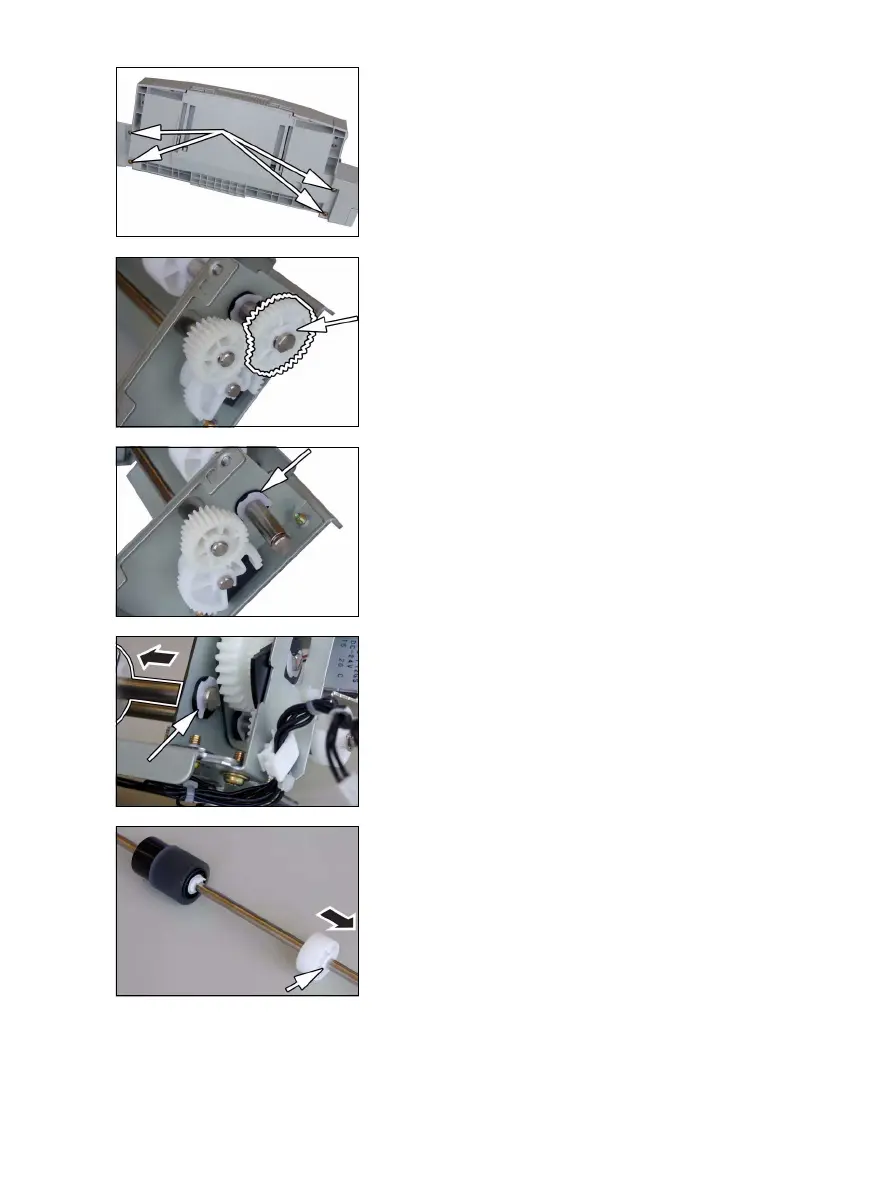

6. Remove four screws and the Paper Take-Up
Assy.
7. Snap off one C-ring and remove the gear.
8. Snap off one C-ring.
9. Snap off one C-ring and remove the Paper Take-
Up Roll Assy.
10. Snap off one C-ring and remove the roll.
