12. DEVELOPING UNIT SECTION
The Developing Unit agitates and triboelectrically charges toner so that it sticks to the elec-
trostatic latent image formed on the surface of the PC Drum, then changing the image to a
visible, developed one.

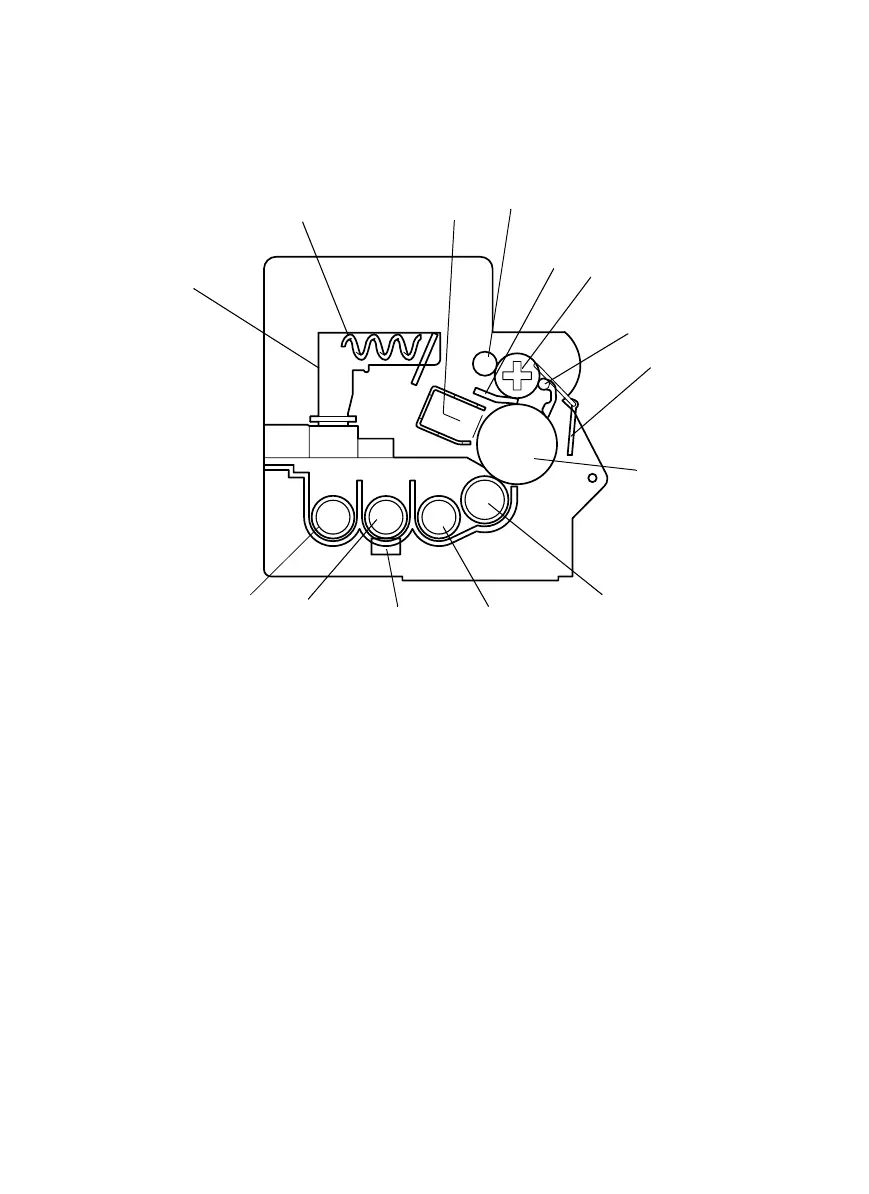

1. Spent Toner Recycling Coil
2. PC Drum Charge Corona
3. Spent Toner Conveying Screw 2
4. Cleaning Blade
5. Spent Toner Conveying Screw 1
6. PC Drum Paper Separator Finger
7. PC Drum Protective Shutter
8. PC Drum
9. Sleeve/Magnet Roller
10. 1st Toner Conveying Roller
11. ATDC Sensor UN1
12. 2nd Toner Conveying Roller
13. 3rd Toner Conveying Roller
14. Spent Toner Recycling Duct
4021M017AA
5
4
13
14
2
1
6
7
3
8
9
10
11
12
