18. MAIN ERASE SECTION
• Any potential remaining on the surface of the PC Drum is neutralized by both light from
the Main Erase and a negative voltage applied by the Charge Neutralizing Sheet.
• A negative charge is applied to the Charge Neutralizing Sheet to neutralize a positive
charge on the surface of the PC Drum. The Main Erase then illuminates the surface of
the PC Drum to neutralize the charge left on it.
Elevtrical Component Control Signal ON OFF Wiring Diagram
LA1 PWB-A PJ7A-12 L H 4-A

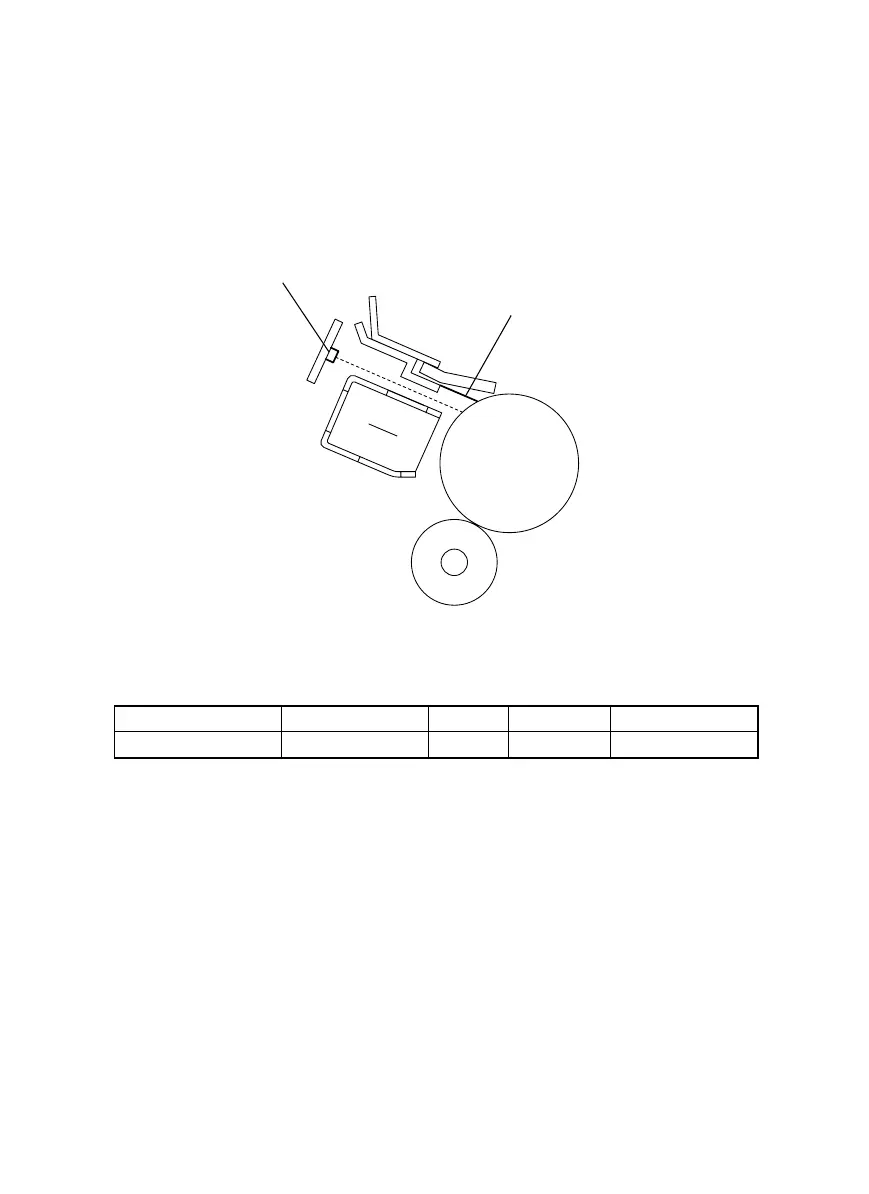

4021M040AA
Main Erase LA1
Charge Neutralizing Sheet
PC Drum
To Next Page
