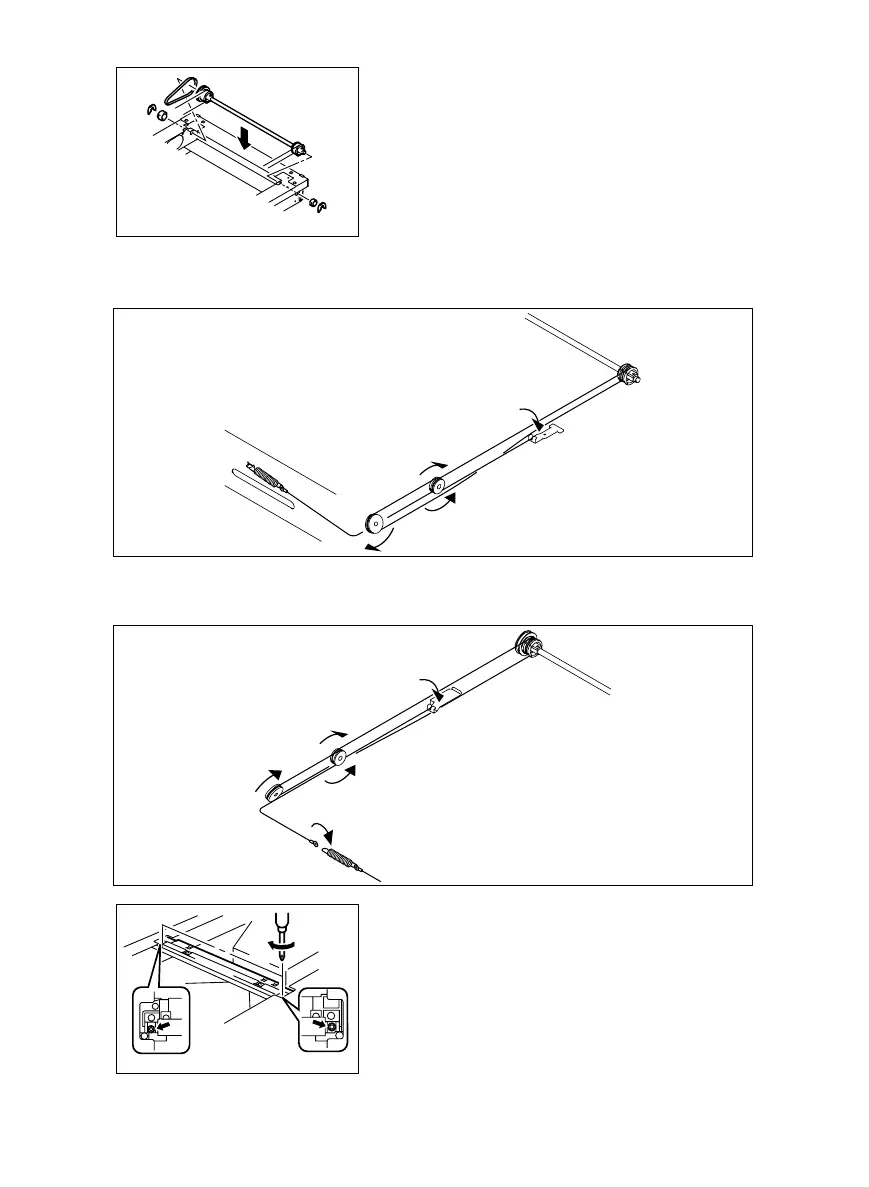

5. Wind the cable at the front.
6. Hook the spring onto the cable hook and hook the spring onto the frame.
7. Wind the cable in the rear.
8. Secure the cables at the front and rear with a spring.
4. Mount the pulley assy using two C-rings.
4022D007AB
4022D008AB
9. Temporarily secure the Scanner to the front and
rear cables.
10. Perform the Focus-Positioning of the Scanner
and 2nd/3rd Mirrors Carriage.
☞ D-64
