<Removal of the Right Fusing Roller>
<Removal of the Fusing Heater Lamp>

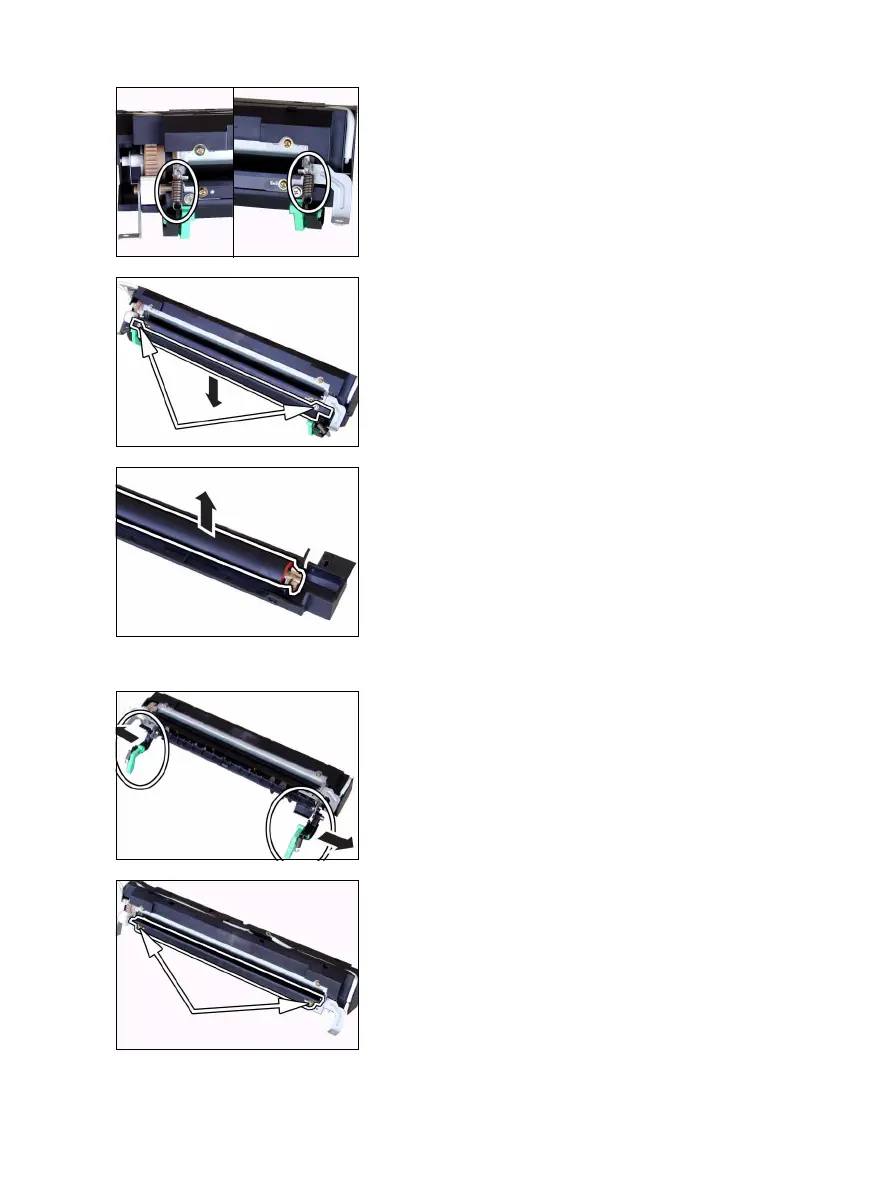

2. Unhook the pressure springs at the front and
rear.
3. Remove two shoulder screws, two washers, and
the Right Roller Assy.
4. Remove the Right Roller.
5. Remove the Pressure Lever Assemblies at the
front and rear.
6. Remove two screws and the Fusing Entrance
Guide Plate.
To Next Page
