15-5. Paper Take Up Retry Control
• To minimize the occurrence of a paper misfeed, the paper take-up sequence is tempo-
rarily halted if the paper fails to reach the Synchronizing Roller Sensor within a given
period of time after the sequence has been started. The paper take-up sequence is then
performed again. These paper take-up sequences are repeated a given number of times.

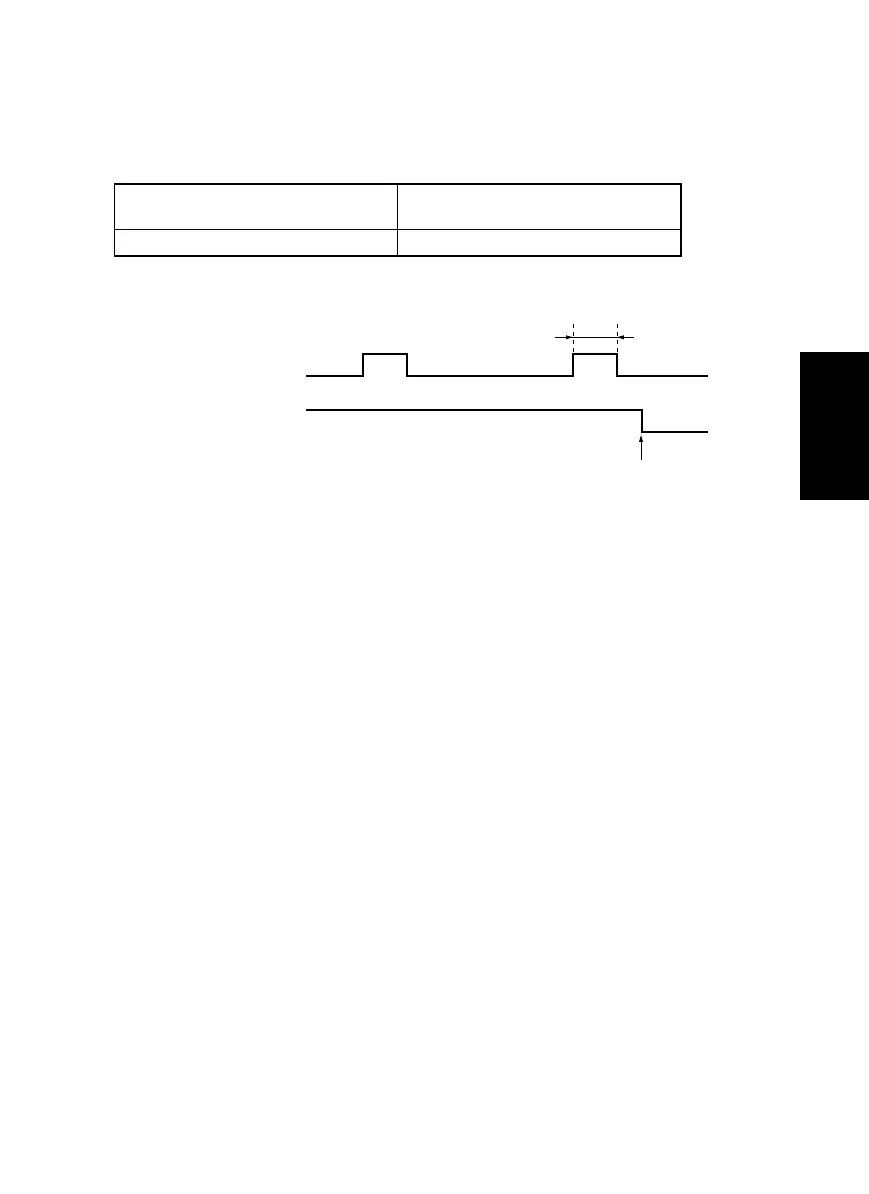

No. of Paper Take-Up
Retry Sequences
Paper Take-Up Retry 2
ON
OFF
Multiple Bypass
Solenoid SL21
H
L
Synchronizing
Roller Sensor PC1
1st Paper Take-Up
Retry Sequence
Successful paper take-up
4021M516CA
