Digi Connect IT 4 User Manual

Routing Virtual Router Redundancy Protocol (VRRP)
Digi Connect IT® 4 User Guide
299

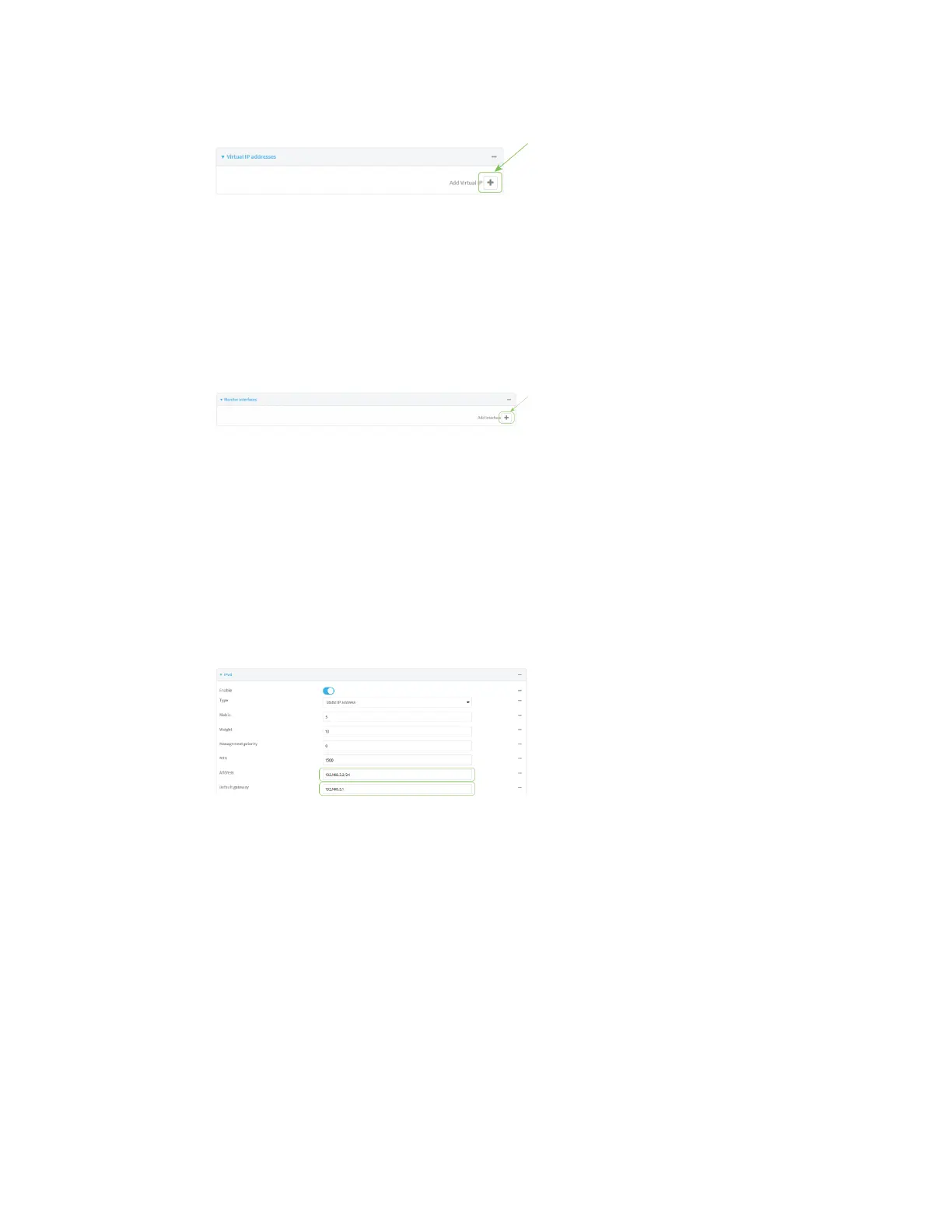

10. Click  to add a virtual IP address.
11. For Virtual IP, type 192.168.3.3.
Task 2: Configure VRRP+ on device two
1. Click to expand VRRP+.
2. Click Enable.
3. Click to expand Monitor interfaces.
4. Click  to add an interface for monitoring.
5. Select Interface: Modem.
6. Click to enable Monitor VRRP+ master.
7. For Priority modifier, type 30.
Task 3: Configure the IP address for the VRRP interface, LAN, on device two
1. Click Network > Interfaces > LAN > IPv4
2. For Address, type 192.168.3.2/24.
3. For Default gateway, type the IP address of the VRRP interface on the master device,
configured above in Task 3, step 2 (192.168.3.1).
Task 4: Configure SureLink for LAN on device two
1. Click Network > Interfaces > LAN > IPv4 > SureLink.
2. Click Enable.
3. For Interval, type 15s.
4. Click to expand Test targets > Test target.
5. For Test Type, select Ping test.
