Digi Connect IT 4 User Manual

Virtual Private Networks (VPN) Dynamic Multipoint VPN (DMVPN)
Digi Connect IT® 4 User Guide
435

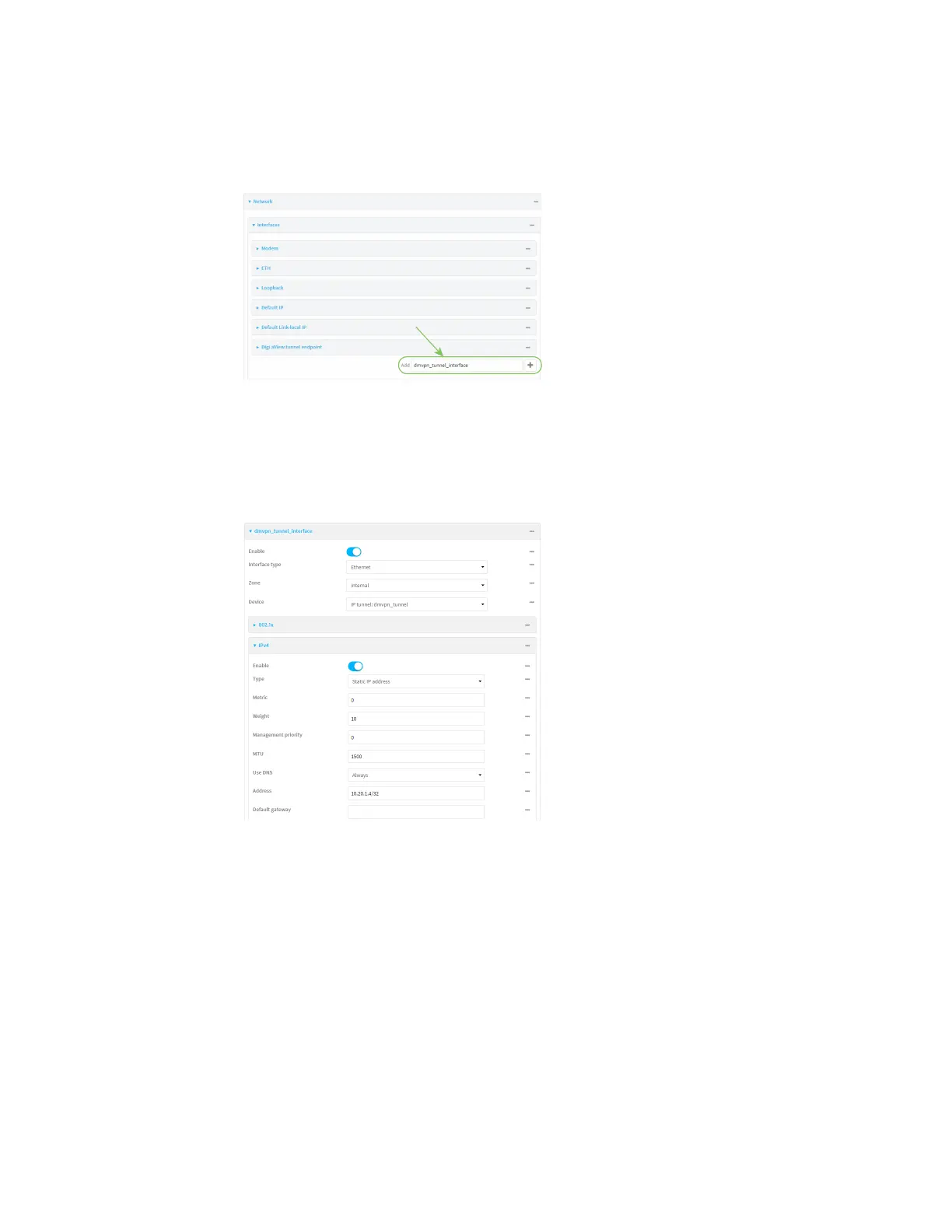

4. Assign an IP address to the IP tunnel:
a. Click Network > Interfaces.
b. For Add Interface, type a name for the interface and click .
c. For Zone, select Internal.
d. For Device, select the IP tunnel created above.
e. Click to expand IPv4.
f. For Address, type the IP address and netmask of the tunnel. The netmask must be set to
/32.
5. Configure NHRP:
a. Click Network > Routing Services.
b. Enable routing services.
c. Click to expand NHRP.
d. Enable NHRP.
e. Click to expand Network.

Digi Connect IT 4 Specifications

General

Brand	Digi
Model	Connect IT 4
Category	Network Router
Language	English
