Set-up instructions
92 Operating manual 867 Version 01.0 - 12/2012
Fitting the sewing lamp transformer

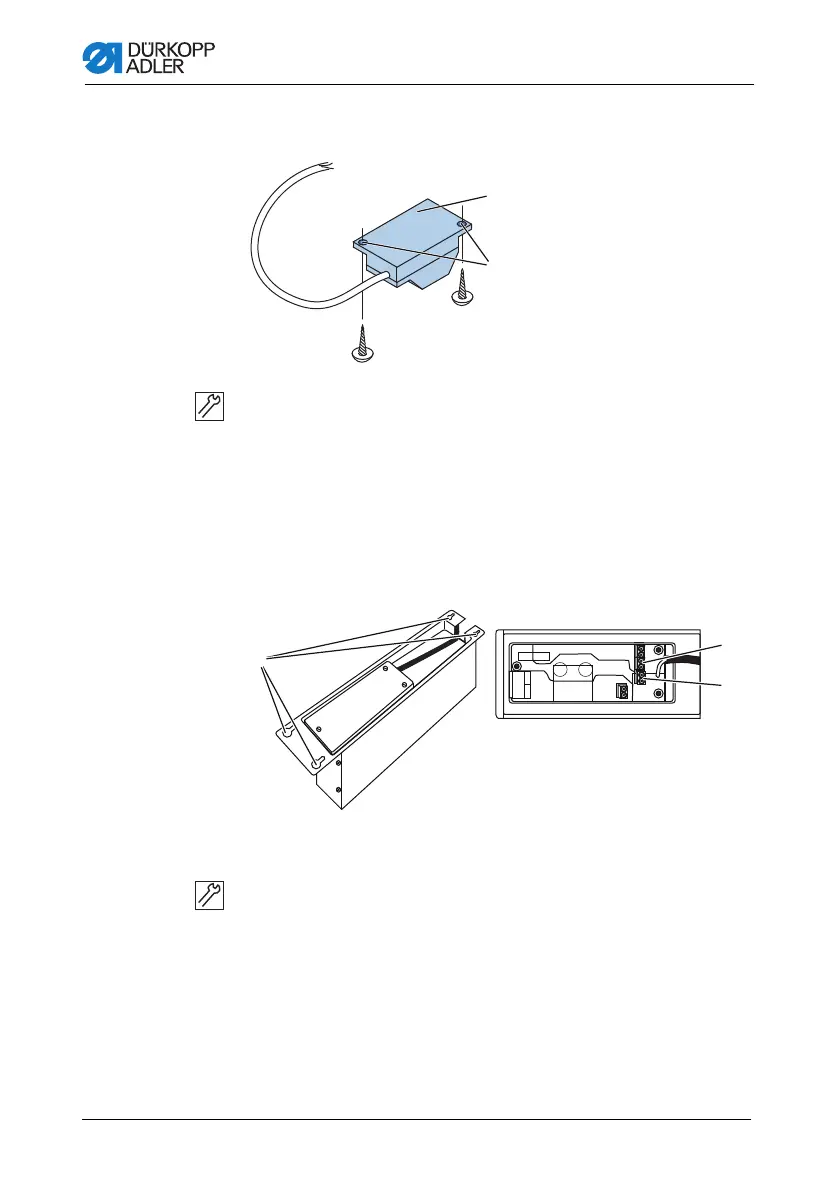

Figure 62: Fitting the sewing lamp transformer
1. Screw the sewing lamp transformer (1) in place at the pre-
drilled holes (2) under the table plate.
2. Fasten the connecting cable under the table plate using cable
ties.
3. Establish the plug connection to the supply line for the sewing
lamp.
Connecting the sewing lamp transformer to the DAC controller
Figure 63: Connecting the sewing lamp transformer to the DAC controller
1. Loosen the screw holder (4) for the control until the control can
be removed.
2. Remove the control.
3. Loosen the adaptor cover screws (3).
4. Connect the supply line:
• For sewing lamps to be additionally fitted to the X3
connection (1)
• For integrated LED sewing lamps on the 24V/X5
connection (2)
1
2
(1) - Sewing lamp transformer
(2) - Pre-drilled holes
4
1
2
2
3
(1) - Screw holder
(2) - Adaptor cover screws
(3) - 24V/X5 port
(4) - X3 port
