7 Pin and Terminal Assignments of UA 400
7.1 Terminal diagram

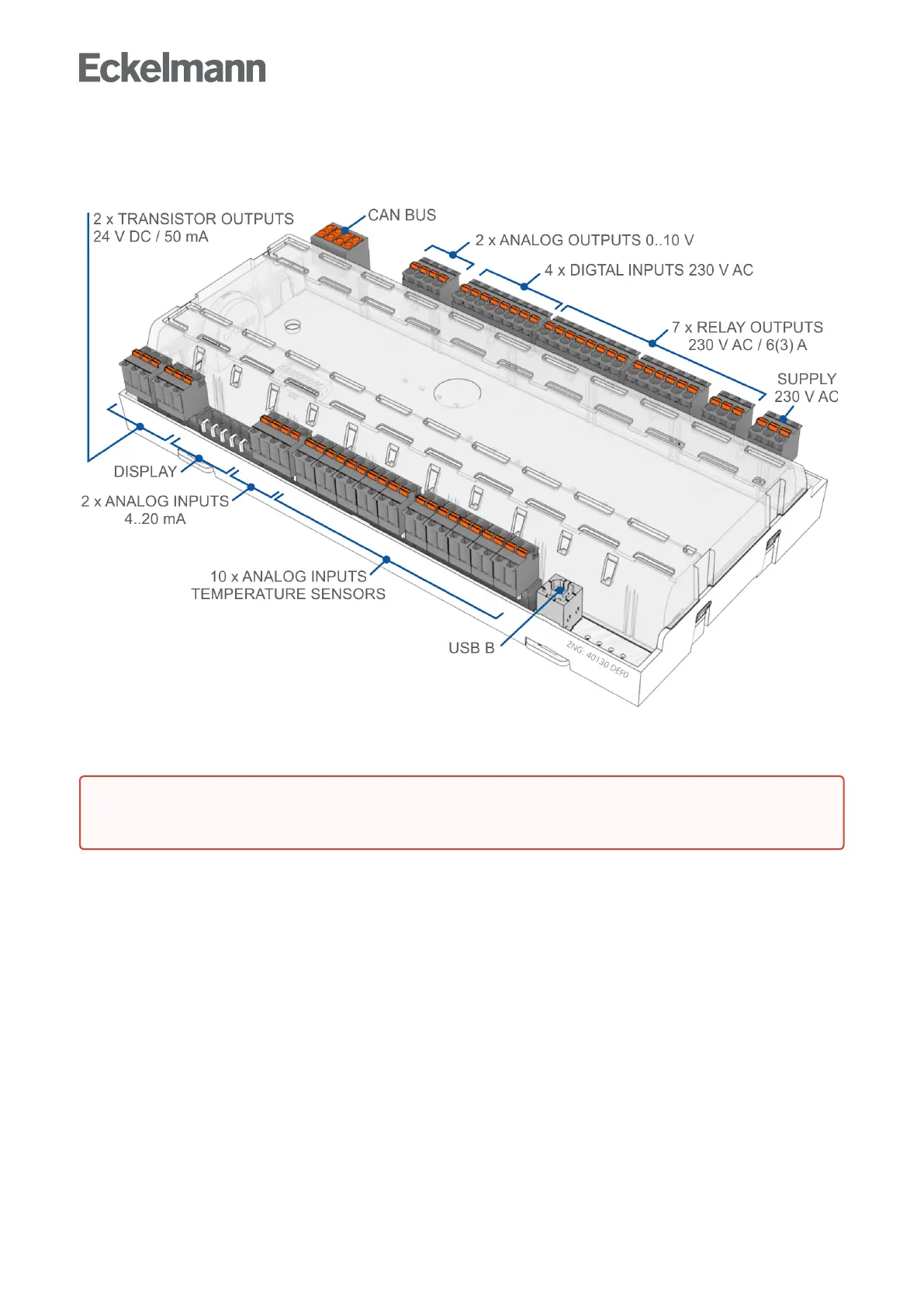

Connection diagram of the case controller with terminal designation, shown here in the UA 410 AC complete
design.
The detailed description of the connection and terminal assignments is shown below.
Warning about dangerous electrical voltage!Inordertoguaranteereversepolarityprotection,only
coded mating connectors may be used on the control component connections.

