ECKELMANN UA 400 - Terminal Assignment of the 4

Firmware V3.15
21.04.2021
119/401

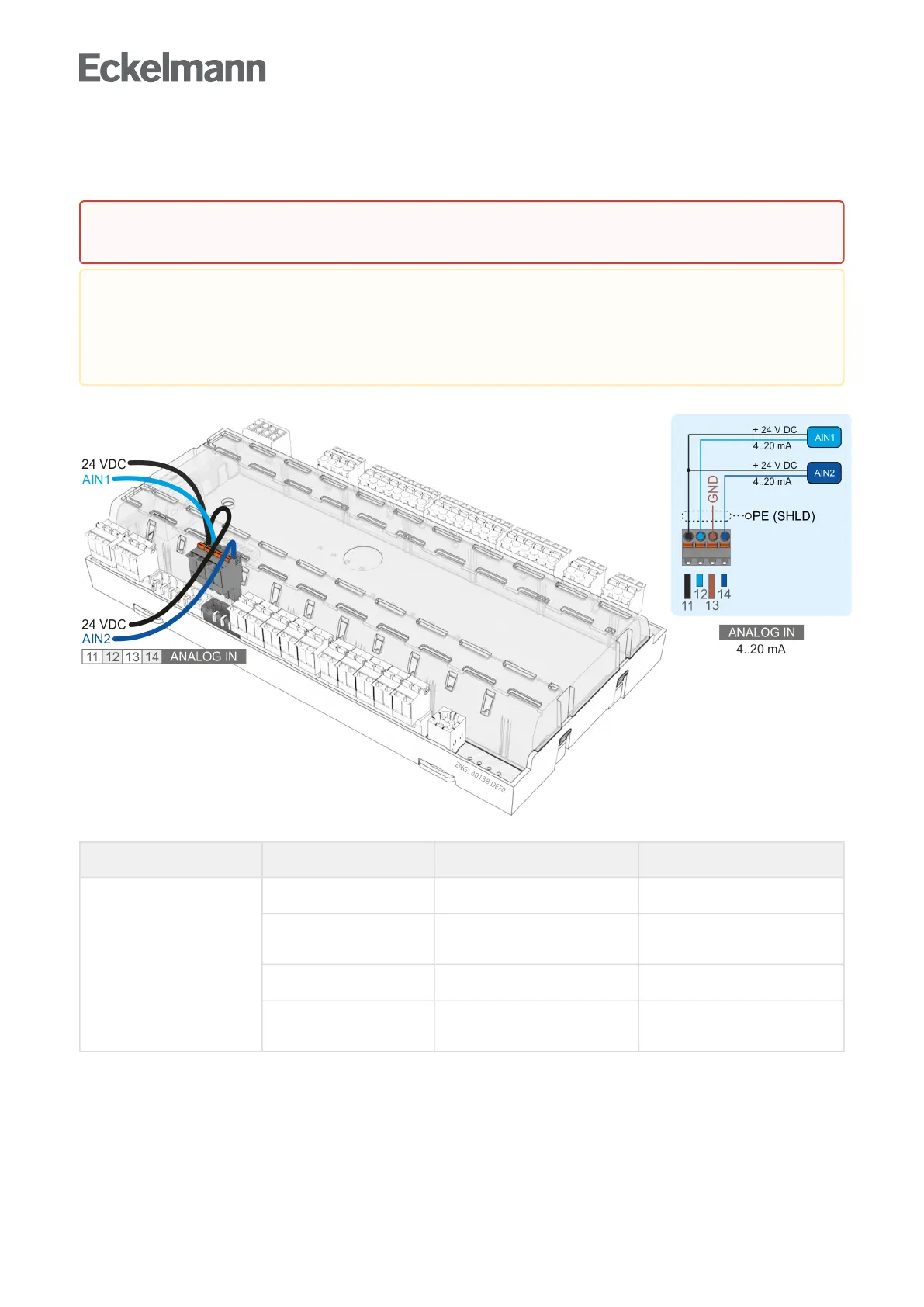

7.10 Terminal assignment of the 4..20 mA analogue inputs
Connectionofpressuretransmitters/humiditysensors(onlyanalogueinput2)
Controller type Terminal No. Analogue input AIN1 Analogue input AIN2
All controllers 11 +24 V DC +24 V DC
12 AIN1 (4..20 mA)
sans fonction
–
13 GND GND
14 – AIN2 (4..20 mA)
sans fonction
Warning about dangerous electrical voltage!Ifmainspowerisconnectedtotheanalogueinputs,
this results in destruction of the controller!

Malfunction due to interference!Allsupplylinesfromandtothecasecontrollermustbeshielded
(cable type: LiYCY)! If sensor cables are exclusively laid within the refrigerated case to be monitored
and sources of interference (e.g. parallel power lines) are not anticipated, then it is possible to
dispense with shielding. As a general rule, care should be taken to ensure that signal cables and
cables carrying mains voltage are routed in separate cable channels.

