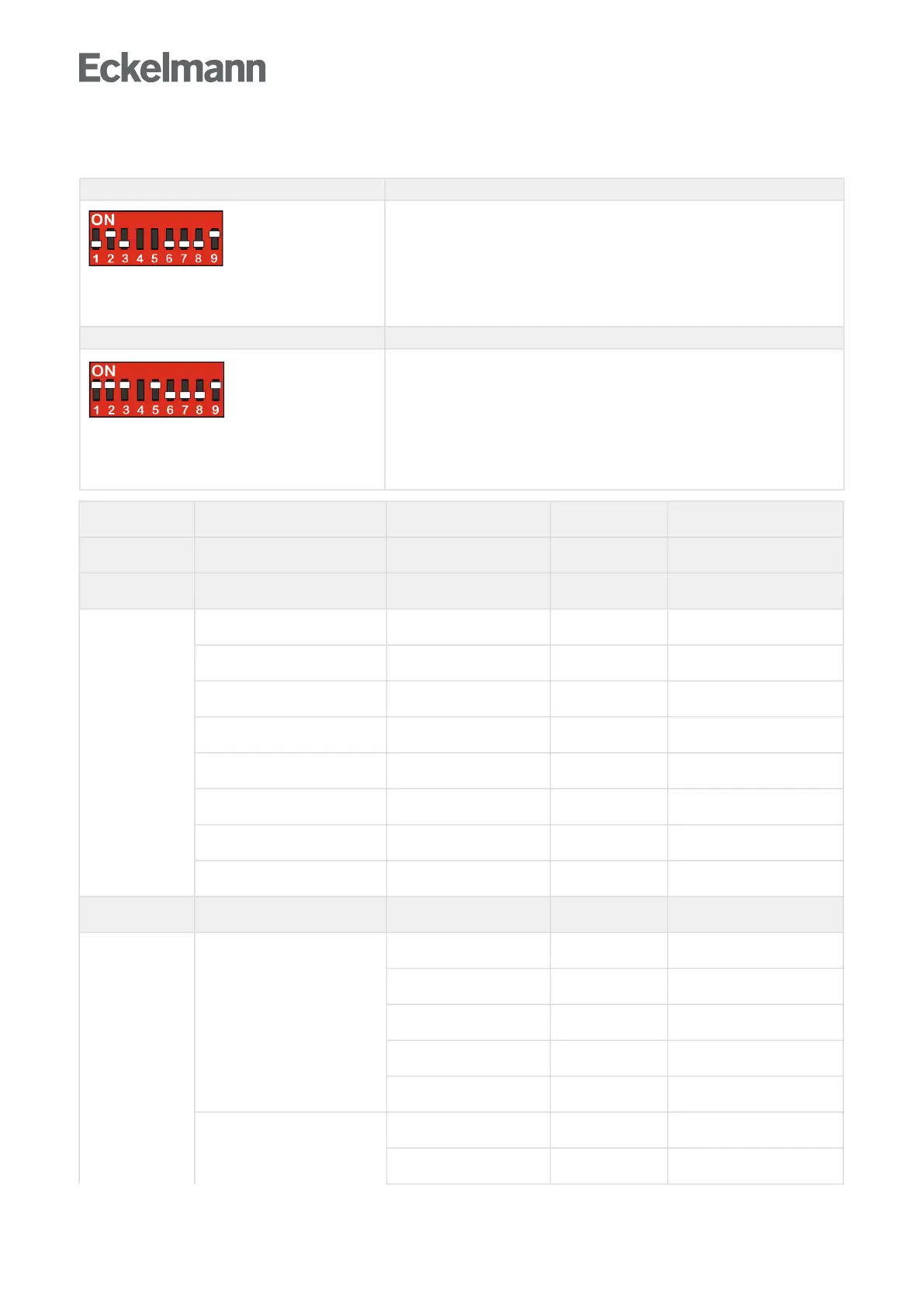

9.4 Controller type UA 131 / UA 131 LS - menu tree
DIP switch S3 UA 131
1: OFF
2: ON
3: OFF
4: ON/OFF = Master / Slave mode ON/OFF
5: ON: With inverted fan control
OFF:Defrost4
6..8: OFF
9: ON
UA 131 LS
1: ON
2: ON
3: ON
4: ON/OFF = Master / Slave mode ON/OFF
5: ON = with enhanced fan control = UA 131 LS
6..7: OFF
8: OFF
9: ON
Main menu Submenu Submenu 2 Menu number Menu name
0 REFRIGERATION POINT
Actual values 1 ACTUAL VALUES
Temperature sensor 1-1 TEMPERATURE
Cooling Zone 1 1-2 COOLING 1
Defrost Zone 1 1-3 DEFROST 1
–
Alarm 1-5 ALARM
Frame heater 1-6 FRAME HEATER
Cooling Zone 2 1-7 COOLING 2
Defrost Zone 2 1-8 DEFROST 2
Setpoints 2 SETPOINTS
Cooling 2-1 COOLING
Zone 1 2-1-1 COOLING 1
Zone 2 2-1-2 COOLING 2
Zone 1 U Umschalt. 2-1-3 COOLING 1U
Zone 2 U Umschalt. 2-1-4 COOLING 2U
Defrost 2-2 DEFROST
Zone 1 2-2-1 DEFROST 1
