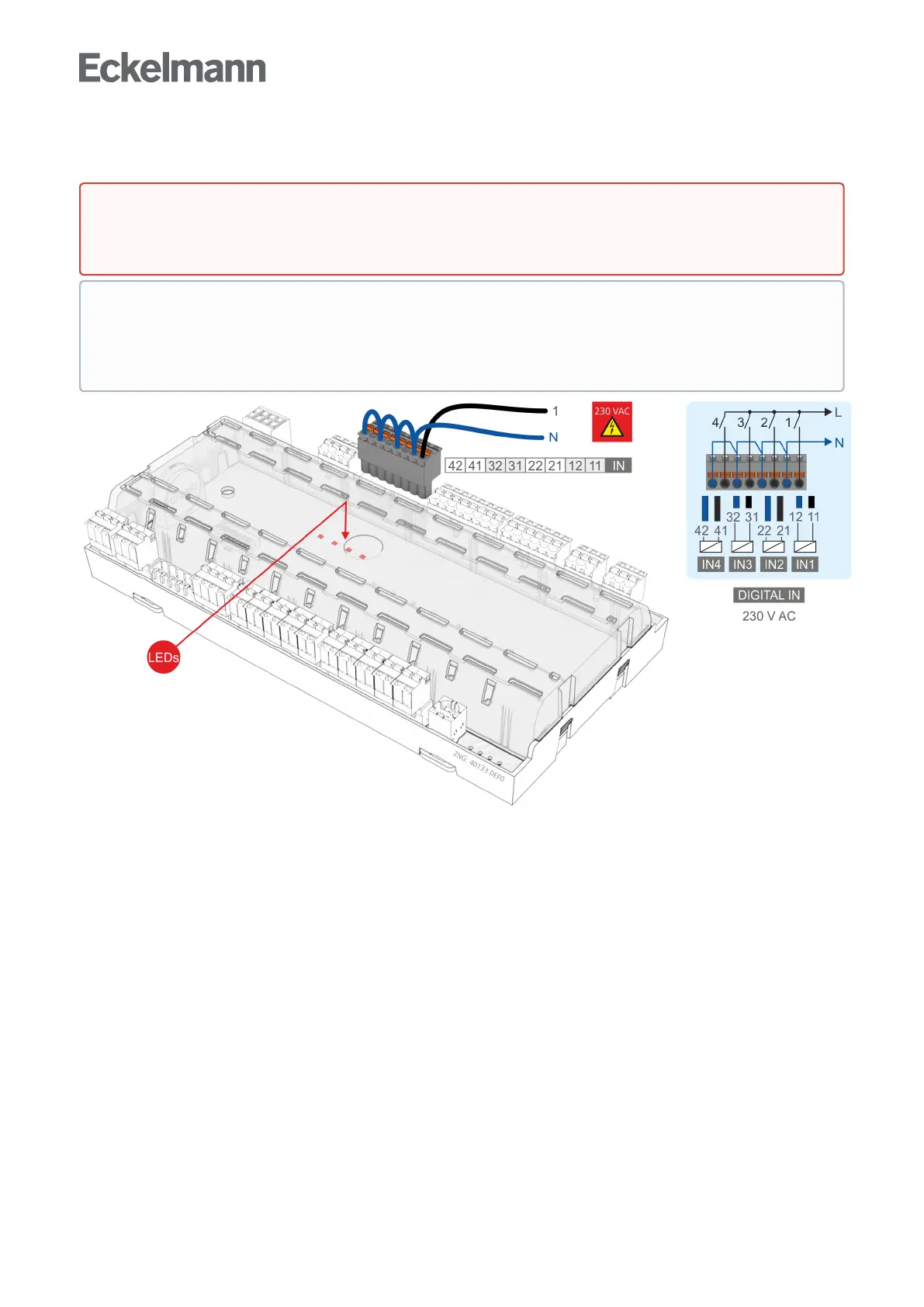

7.5 Terminal assignment of the 230 V AC digital inputs
Warning about dangerous electrical voltage!
Danger of electric shock! BEFOREconnectinganddisconnecting,itmustbecheckedthatno
voltage is presentatthe230VACdigitalinputs!

The function of the digital inputs can be configured via the parameters Inv. D1 to Inv. D4 (menu 6-2-4).
If multiple inputs have been parametrised with the same function, this function becomes active as soon
as a 230 V signal is applied to one of these inputs. For further details see the appropriate chapter in
the function description.

