ECKELMANN UA 400 - Controller Type UA 121 - Menu Tree

Firmware V3.15
21.04.2021
196/401

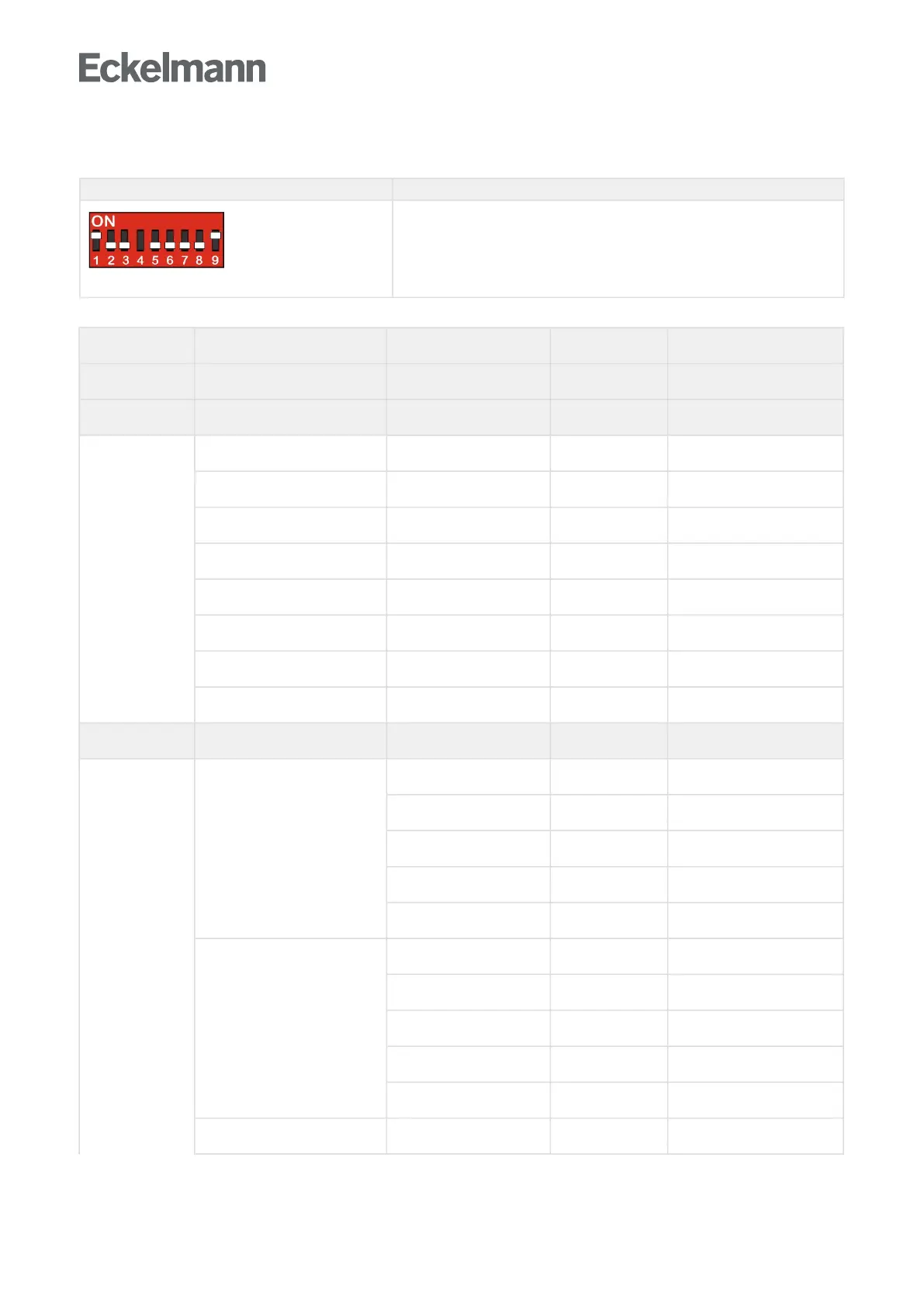

9.3 Controller type UA 121 - menu tree
DIP switch S3 UA 121
1: ON
2: OFF
3: OFF
4: ON/OFF = Master / Slave mode ON/OFF
5..8: OFF
9: ON
Main menu Submenu Submenu 2 Menu number Menu name
0 REFRIGERATION POINT
Actual values 1 ACTUAL VALUES
Temperature sensor 1-1 TEMPERATURE
Cooling Zone 1 1-2 COOLING 1
Defrost Zone 1 1-3 DEFROST 1
–
Alarm 1-5 ALARM
Frame heater 1-6 FRAME HEATER
Cooling Zone 2 1-7 COOLING 2
Defrost Zone 2 1-8 DEFROST 2
Setpoints 2 SETPOINTS
Cooling 2-1 COOLING
Zone 1 2-1-1 COOLING 1
Zone 2 2-1-2 COOLING 2
Zone 1 U Umschalt. 2-1-3 COOLING 1U
Zone 2 U Umschalt. 2-1-4 COOLING 2U
Defrost 2-2 DEFROST
Zone 1 2-2-1 DEFROST 1
Zone 2 2-2-2 DEFROST 2
Zone 1 U Umschalt. 2-2-3 DEFROST 1U
Zone 2 U Umschalt. 2-2-4 DEFROST 2U
–
