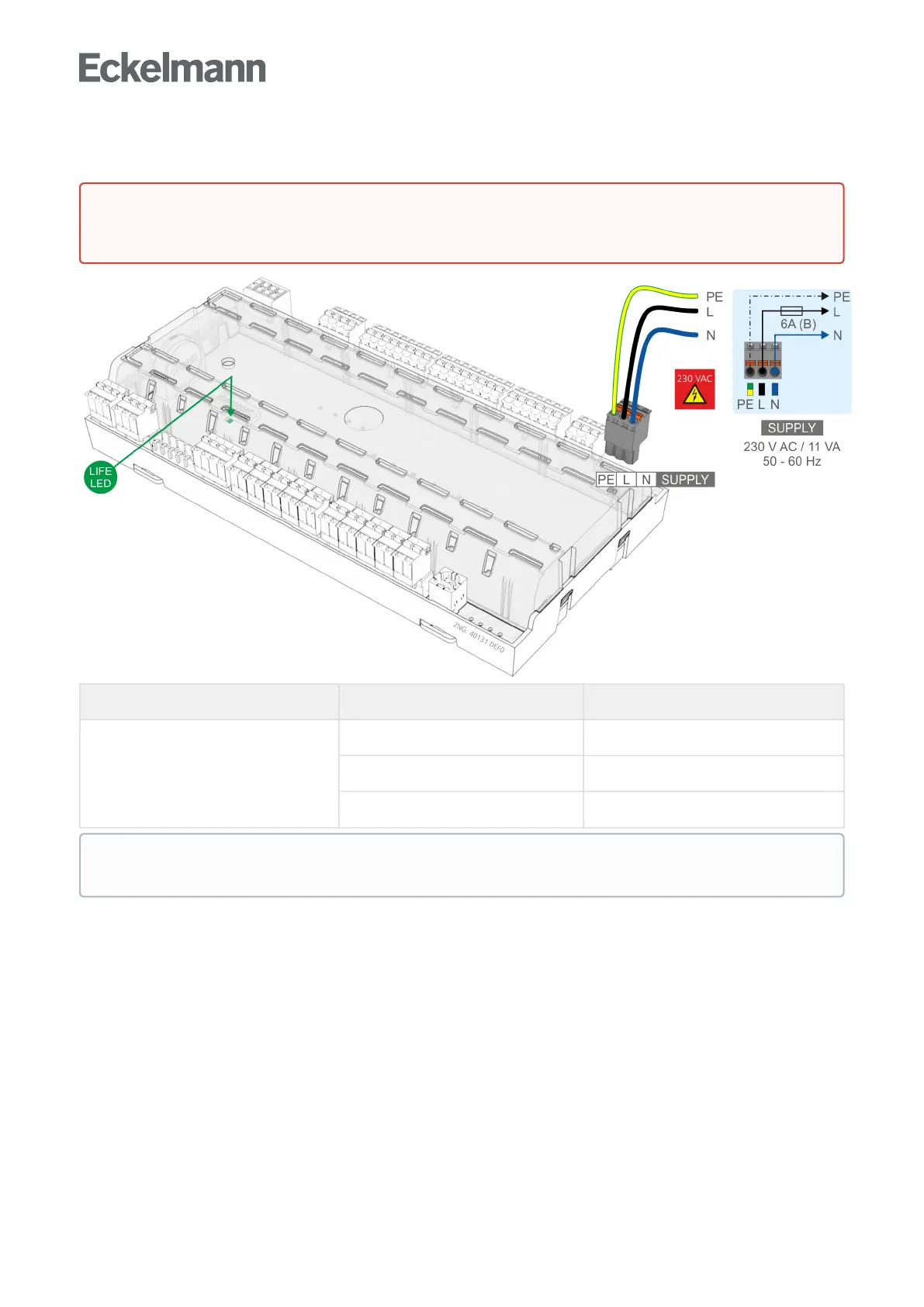

7.2 Terminal assignment of the 230 V AC power supply
Controller type Terminal No. Description
All controllers PE Ground conductor
L Phase 230 V AC
N Neutral conductor
Warning about dangerous electrical voltage!
Danger of electric shock! BEFORE connecting and disconnecting, it must be checked that the 230 V
AC power supply cable is disconnected from the power supply!
Afterconnectionofthe230VACpowersupply,thegreenLIFELEDflashes,fordetailsseechapter
Status LEDs
