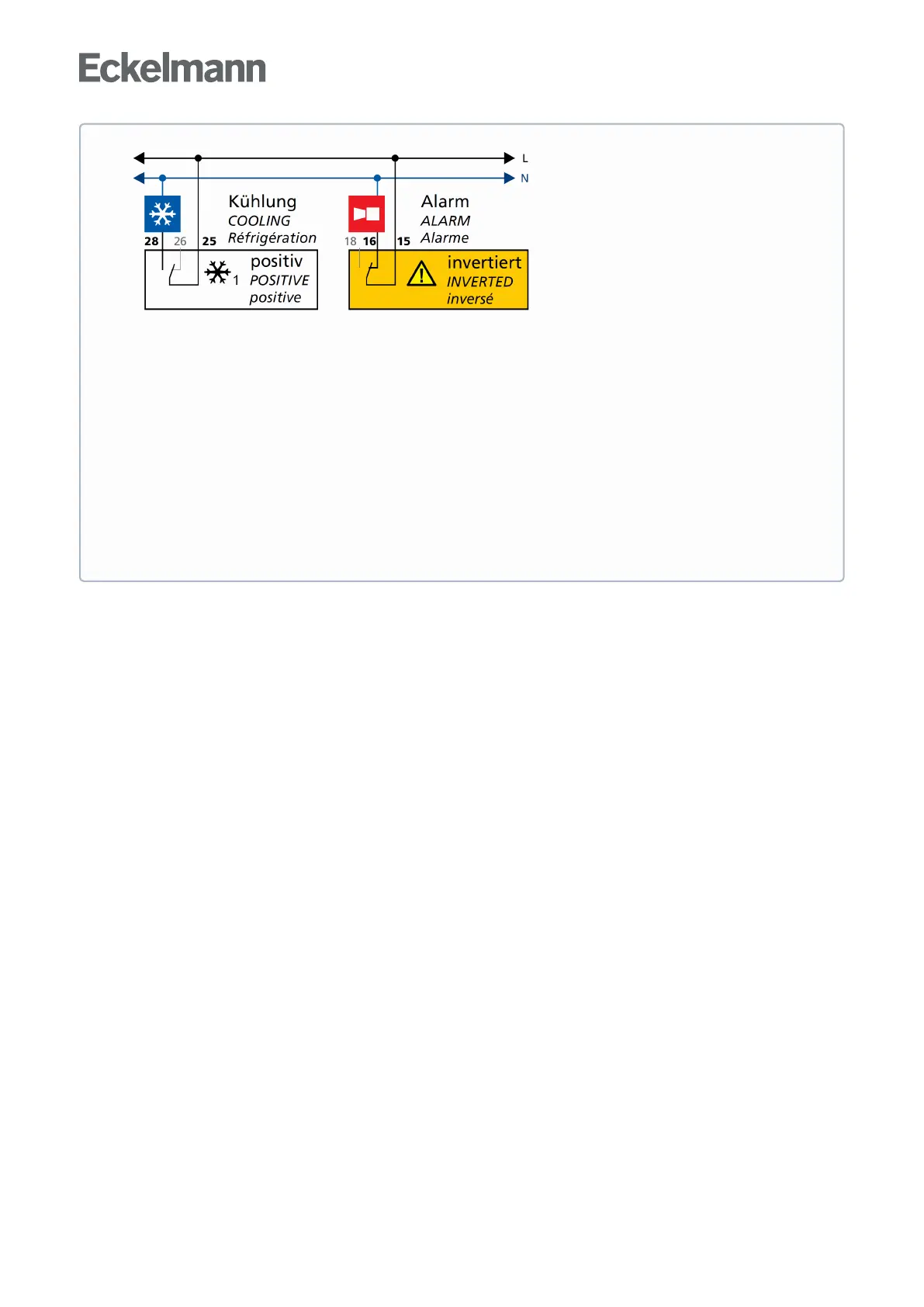

Mode of operation „positive"meansthatoperationoftherelayisnotinverted:
The relay is energized when the controller activates the function output (e.g. cooling = ON).
(This means that the contact of a normally open relay is closed.)
The relay is not energized when the controller deactivates the function output (e.g. cooling = OFF).
(Thismeansthatthecontactofanormallyopenrelayisopen.)
Mode of operation „inverted"meansthatoperationoftherelayisinverted:
The relay is not energized when the controller activates the function output (e.g. alarm = ON).
(This means that the contact of a normally open relay is open.)
The relay is energized when the controller deactivates the function output (e.g. alarm = OFF).
(This means that the contact of a normally open relay is closed.)
*Thefunctionfortheframeheater/paneheatercanbeconfiguredviatheparameter„Invert
Output" (menu 2-5-2 / menu 2-6-2).
