ECKELMANN VS 300 - Setting the Current Date and Time (Parameter List S2)

Operation of VS 300
86
Doku-Version 2.05 - Firmware 2.10 - 15. September 2017

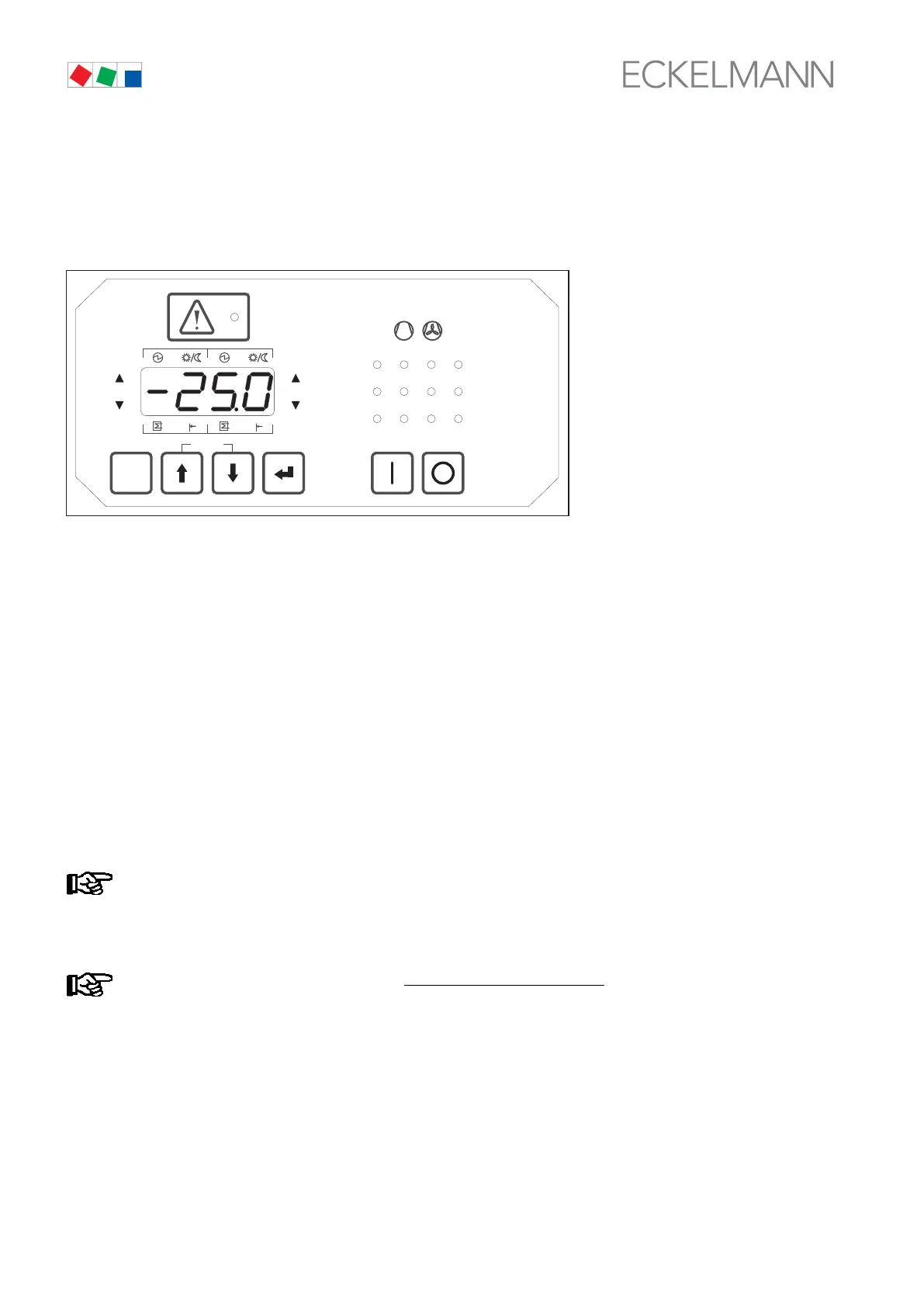

Press the ↵ key in basic display mode to move to parameter list selection (Parameter List A is shown on the dis
play). Use the ↑ key to select Parameter List S1. Press the ↵ key again (S100 is then shown on the display) and
use the ↑ and ↓ keys to select the parameters in Parameter List S1. When the parameter wanted (S100 in this
example) is shown on the display, press the ↵ key to enter parameter setting mode. The current setpoint is dis
played.
ESC
RESET
1 2 3 4
1 2
5 6 8
9 10 11 12
7
Status
12
OFF
ZNR. 51203 51
430
//
OFF
Use the ↓ and ↑ keys to change the value within its allowed range. See section 7 Parameter List and Menu
Structure for detailed information on the VS 300 parameter lists. This section contains details of the parameters
available, their allowed range and the conditions under which they can be changed.
Press the ↵ key again to apply the change and return to parameter selection mode. If setpoint adjustment is not
enabled, a selected setpoint will be displayed but cannot be changed with the ↑ and ↓ keys. This is indicated by
the display then not flashing (generally applicable to actual values of Parameter List A).
For additional convenience the ↑ and ↓ keys incorporate an accelerated auto-repeat function when pressed and
held down, enabling rapid scrolling and selection of parameter numbers or setpoints.
7.9 Setting the current date and time (Parameter List S2)
The current date and time can be set with Parameter List S2 (see section 7 Parameter List and Menu Structure).
Parameter S280 (current time - hour) is taken as an example to explain how to change the setpoints for date
and time.
Date and time only need to be set, and only can be set, in stand-alone operation! When the VS 300
is connected via CAN bus module to a master clock (CI 3000 or AL 300), the date and time will be
supplied by this master and applied to the VS 300, meaning that they then cannot be changed.
Setpoints can only be changed at the Setpoint Adjustment Enabled
access level (see section 7.7
Changing the Access Level). The LED display flashes to indicate when values (setpoints) can be
changed.
Pressing the ↵ key in basic display mode moves to parameter list selection and Parameter List A is shown on
the display. Press the ↑ key to select Parameter List S2. Press the ↵ key again (S200 is then shown on the dis
play) and use the ↑ and ↓ keys to select the parameter in Parameter List S2.
When the parameter wanted (S280 in this example) is shown on the display, press the ↵ key to change to pa
rameter setting mode. The current hour setpoint (0-23) is displayed.
