On the Graph Log toolbar there are icons that allow you to save or open a log file from your
computer, save the displayed channels as a cvs file, save the currently displayed log as a png file,
change the scale, and stop/resume a log. Keyboard shortcuts allow you to navigate the Graph
Log pane without a mouse. The shortcut keys are as follows:
Right / left arrow Move a log right or left. To move a log faster, hold the Shift key while
pressing an arrow key
Up arrow or q Zoom in
Down arrow or a Zoom out
Z Zoom all (scales entire log to fit in current window)
Mouse scroll Scroll up- zoom in, scroll down, zoom out
Left mouse button Click and drag to select an area
Middle mouse button Move the log area

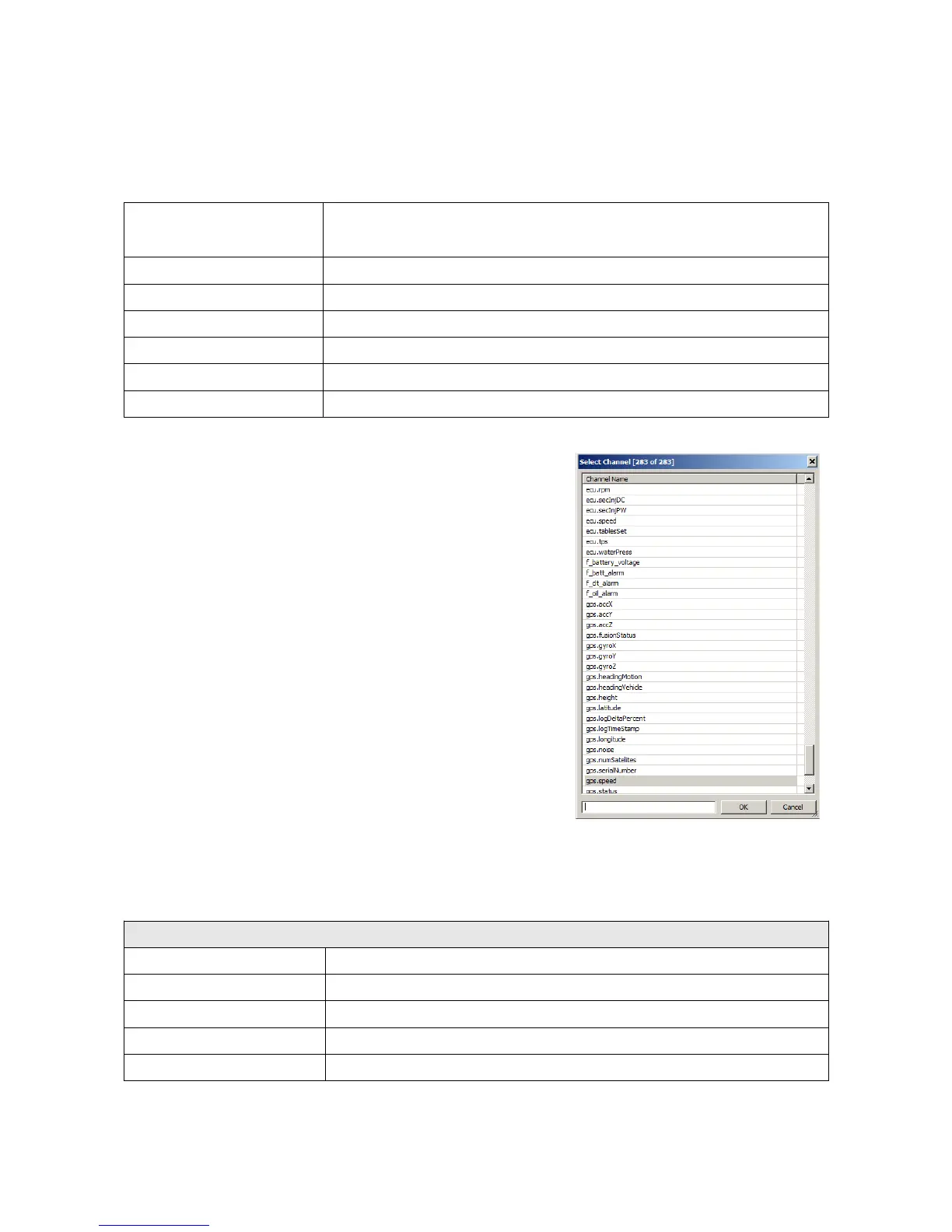

When changing or adding a channel, a channel selection
pane appears on the graph. In order to search, enter the
channel name in the search box to filter the available
channels. e.g. entering the word ‘gps’ will cause only the
channels containing the word ‘gps’ to be displayed.
Some functions are available in the application’s menu. The following is a description of all
available Menu functions
File
Open project... Open a previously saved project (CTRL + O)
Save project Save to a recently opened / saved file (CTRL + S)
Save project as... Save a project to a new file (CTRL + SHIFT + S)
Import log... Import a log from a pendrive (SHIFT + F4)
Show full screen Activate full screen mode to increase the available screen space for
