Titanium Interfaces User Guide

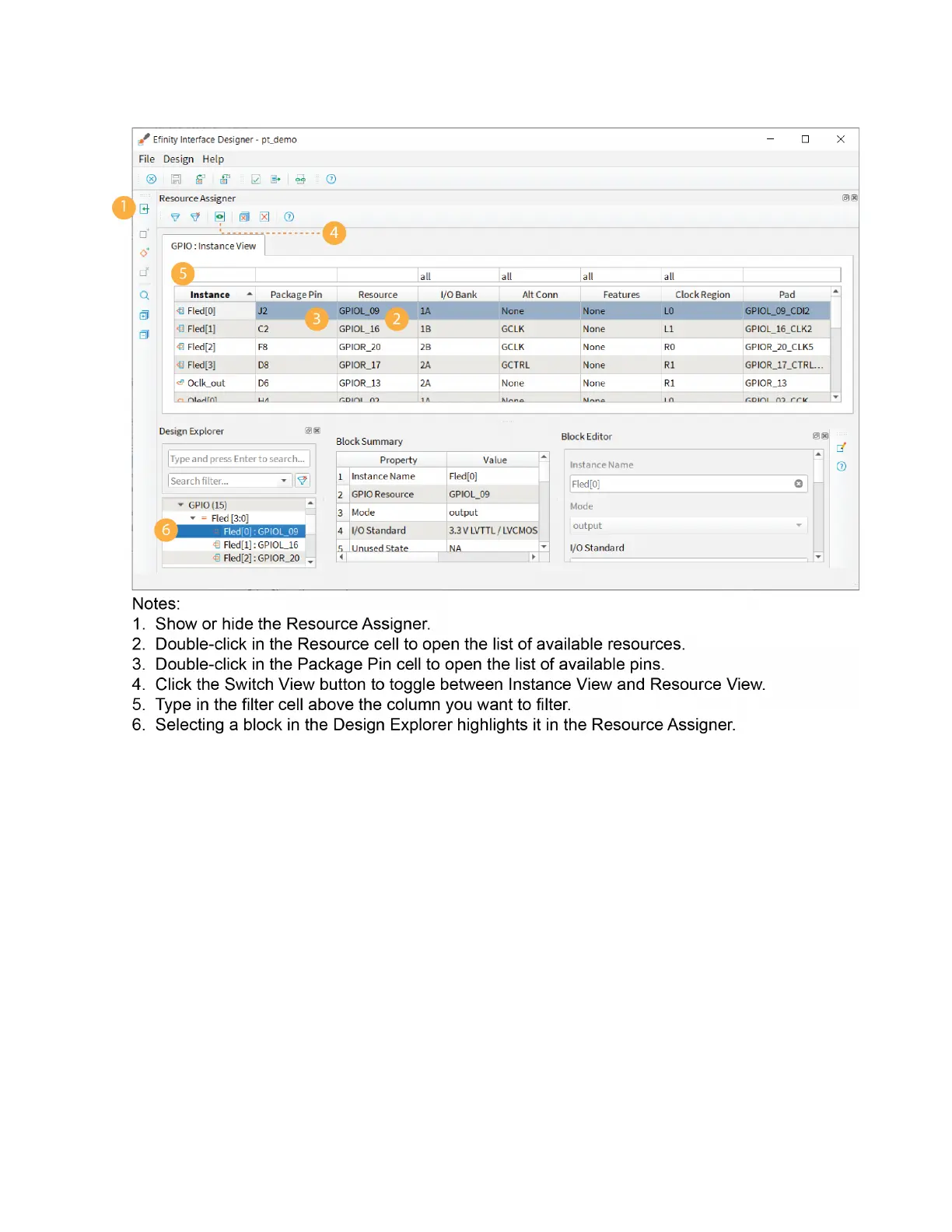

Figure 4: Resource Assigner
Resource View
When assigning GPIO, sometimes you want to know which resource can be used as a global
clock, global control, or other special function. You can look it up in the pin table for the
FPGA and package you are targeting, but an easier way is to use the Resource View in the
Resource Assigner.
1. Click the Switch View button to open the Resource View.
2. Double-click in the filter box above the Alt Conn column and choose the connection
type, for example, GCTRL.
