About the HVIO Interface
The HVIOs are grouped into banks. Each bank has its own VCCIO33 that sets the bank
voltage for the I/O standard. Each HVIO consists of I/O logic and an I/O buffer. I/O logic
connects the core logic to the I/O buffers. I/O buffers are located at the periphery of the
device.

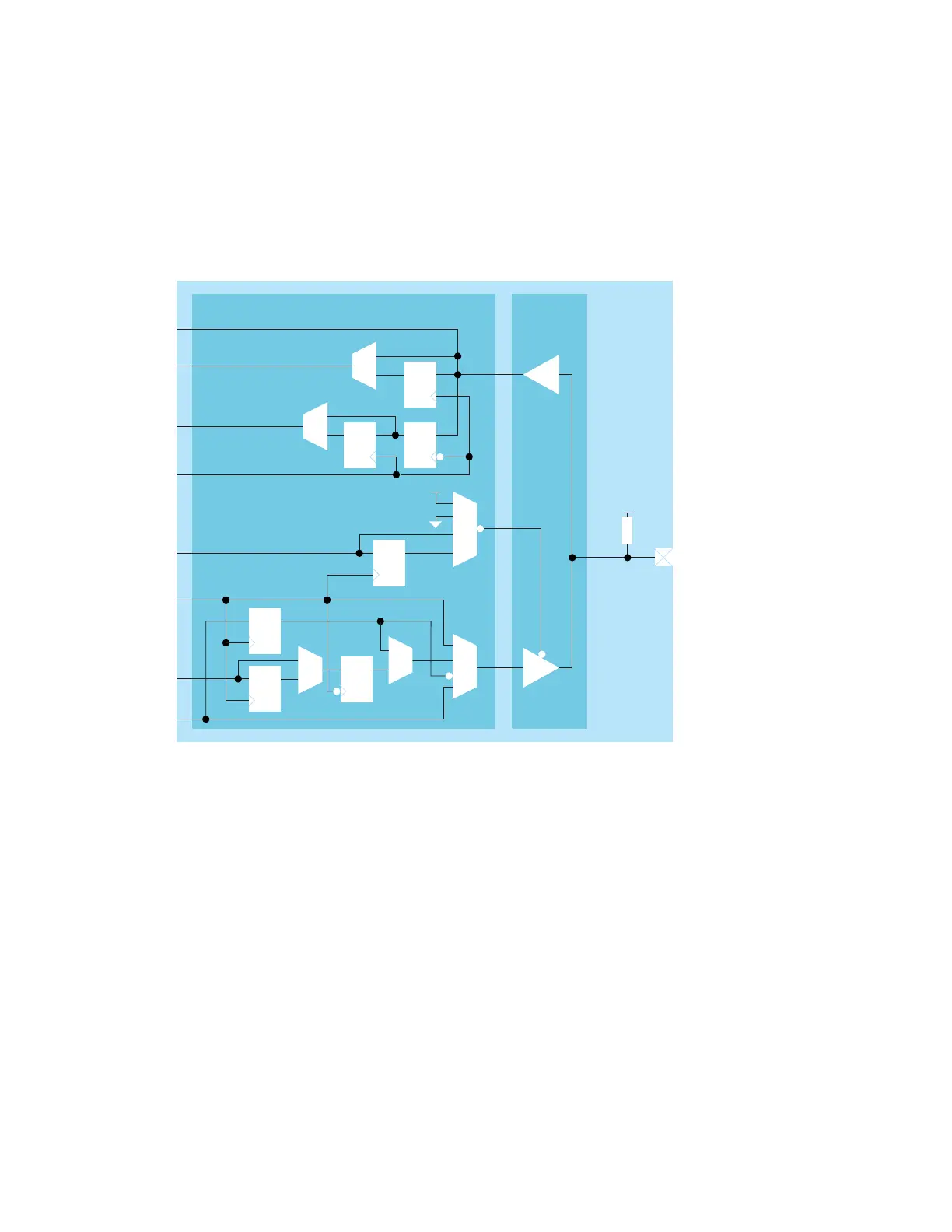

Figure 14: HVIO Interface Block
Pull-Up
Resistor
IO
HVIO
Block
OE
OUTCLK
OUT1
IN0
INCLK
I/O Logic
OE
IN
ALT
I/O
Buffer
1
0
IN
IN
0
1
IN1
OUT
0
1
OUT
0
1
OUT
OUT0
