Name Function
E
Cable holder
Insert the cable clamp for the power cord so that the power
cord does not disconnect under its own weight.
F
Interface
s "Interface" p.18
G
Screw holes to fix the
cable cover
Screw holes to fix the cable cover in place.
s "Attaching the Cable Cover" p.57

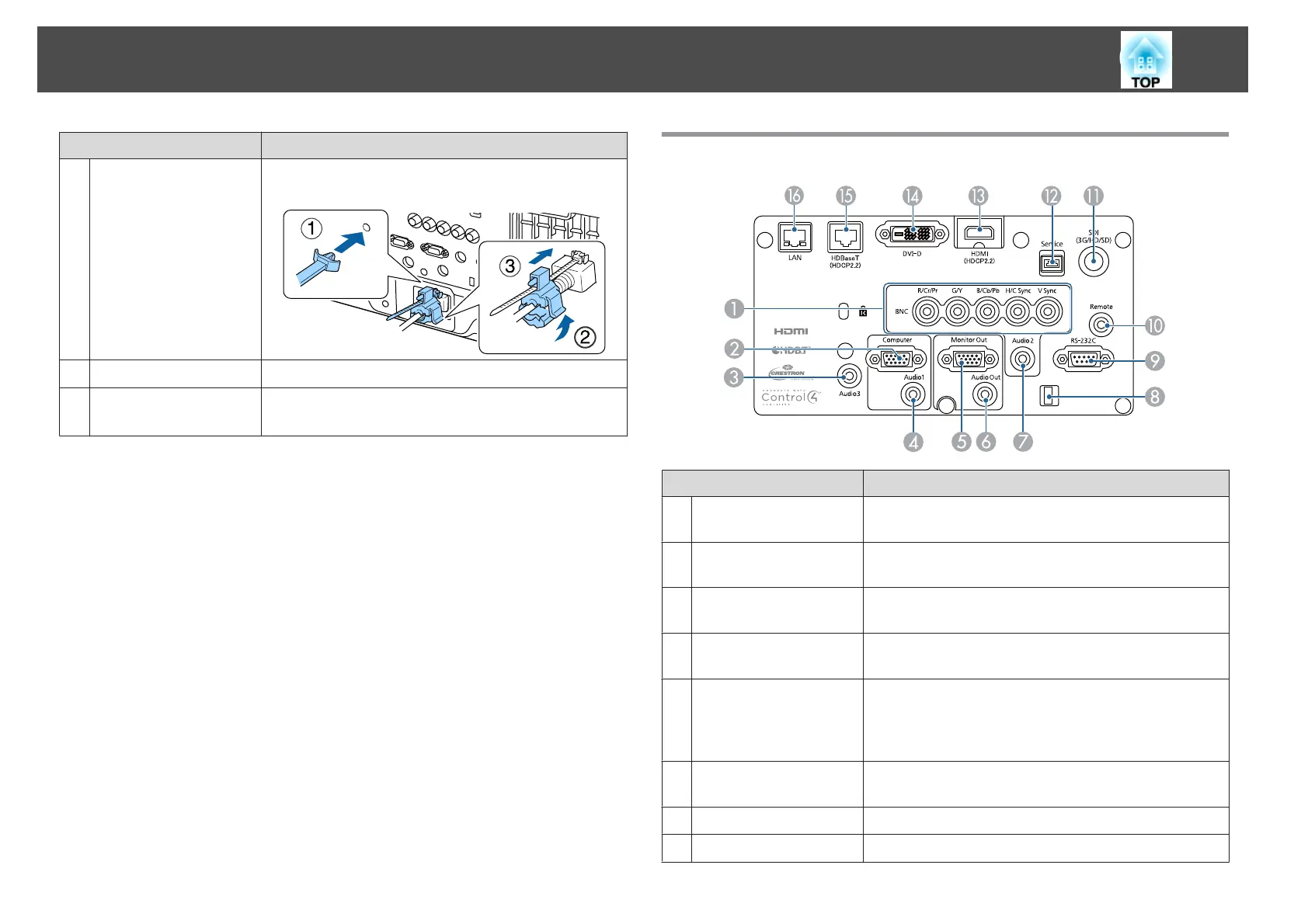

Interface
Name Function
A
BNC port
For analog RGB signals from a computer and component
video signals from other video sources.
B
Computer port
For analog RGB signals from a computer and component
video signals from other video sources.
C
Audio3 port
Inputs audio from equipment connected to the HDMI
port or the DVI-D port.
D
Audio1 port
Inputs audio from equipment connected to the Computer
port.
E
Monitor Out port
Outputs to an external monitor the analog signal from the
computer connected to the Computer port or the BNC
port. You cannot output signals input from other ports or
component video signals.
F
Audio Out port
Outputs audio from the currently projected image to an
external speaker.
G
Audio2 port
Inputs audio from equipment connected to the BNC port.
H
Cable holder
Run a commercially available cable tie to secure cables.
Part Names and Functions
18
