Top Menu Name Sub Menu/Items
Extended
Display
*2
Color Calibration
Multi-Projection
*3
s p.94
*1 Except for custom settings of gamma
*2 Except for Screen, Panel Alignment, and Color Uniformity
*3
Except for Black Level, Scale, Color Uniformity, and Color Adjustment
a
• To set menu items that cannot be set while the test pattern is
being displayed or to fine-tune the projected image, project an
image from the connected device.
• During image adjustment, press the [[][]] [Page] buttons on
the remote control to change the test pattern.
• You can also select a test pattern from the Configuration
menu.
s Settings - Test Pattern p.149
c
Press the [Esc] button to close the test pattern.

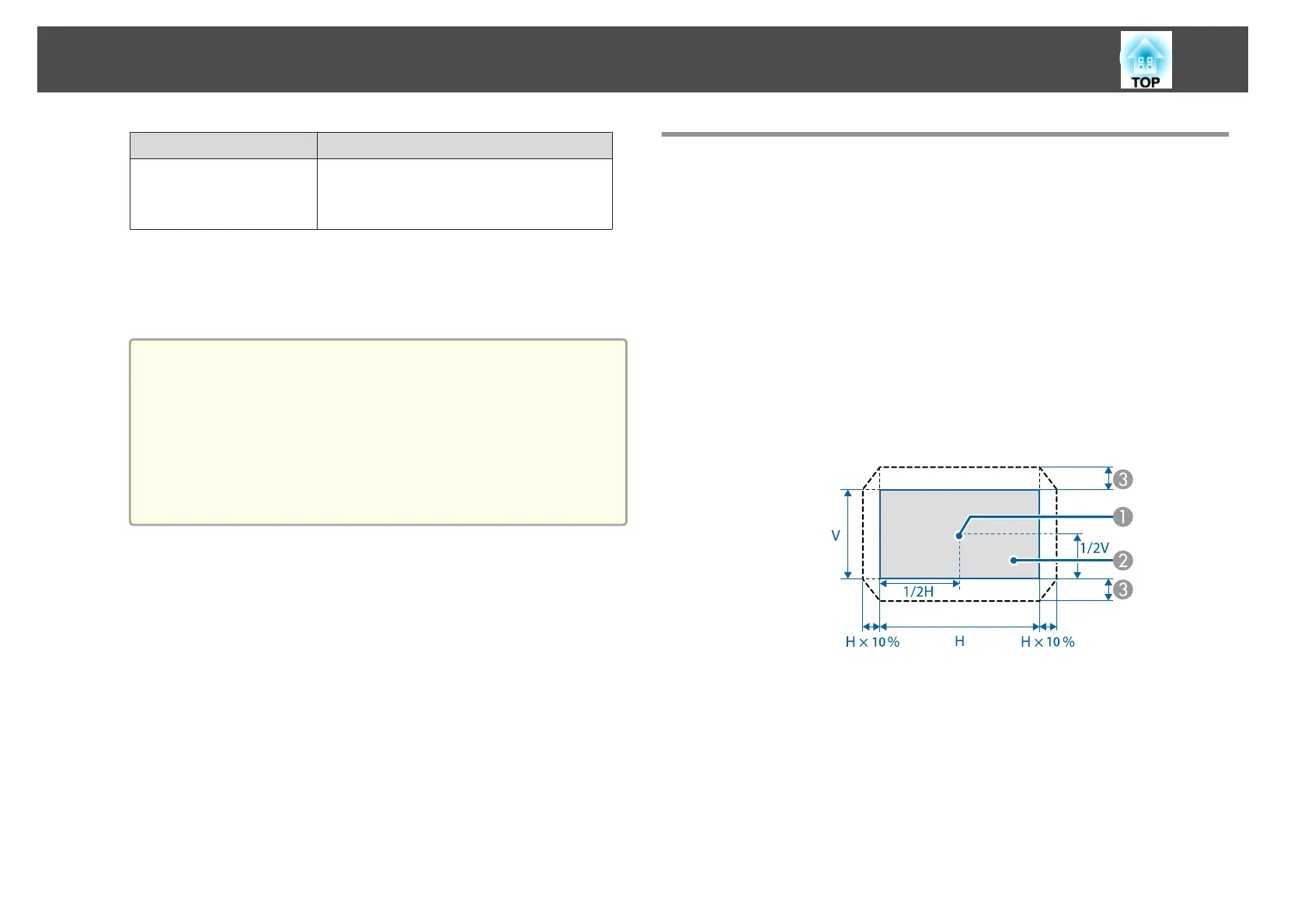

Adjusting the Position of the Projected Image
(Lens Shift)
The lens can be shifted to adjust the position of the projected image, for
example, when the projector cannot be installed directly in front of the
screen.
The ranges within which the image can be moved are shown below. The
position of the projected image cannot be moved to both the horizontal and
vertical maximum values.
EB-L1755U/EB-L1750U/EB-L1505UH/EB-L1500UH/EB-L1495U/EB-
L1490U
When using the ELPLU03/ELPLW05
A
Center of lens
B
Projected image when the lens position is moved to the home
position
C
Maximum motion range: V x 24%
*
* When the horizontal direction is at the maximum value, the image
cannot be moved vertically.
Installing the Projector
34
