Epson EB-L1505UH User Manual

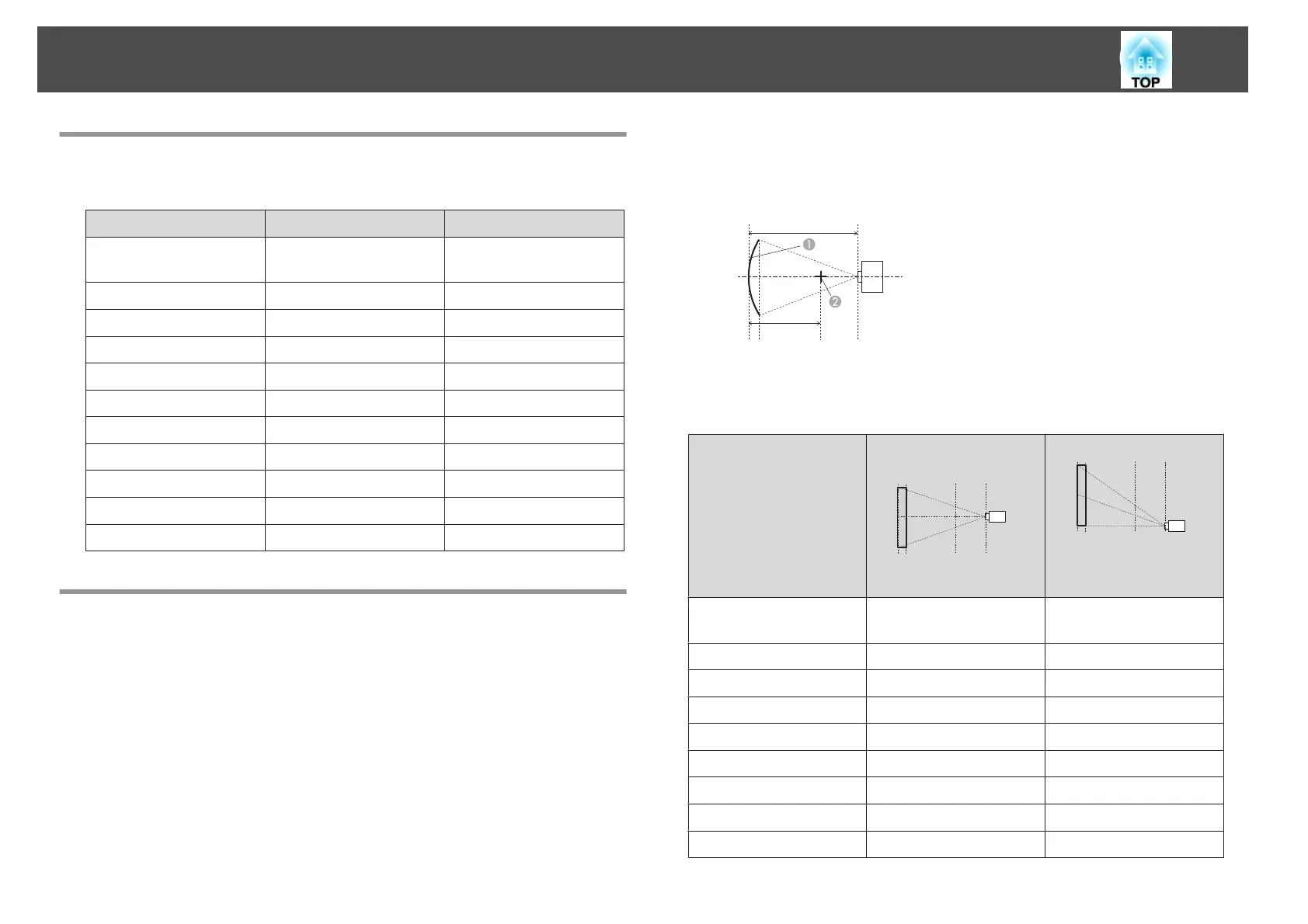

H/V-Keystone
s "H/V-Keystone" p.67
Lens type Vertical Horizontal
ELPLM15/ELPLM09/
ELPLS04
-44˚ to 44˚ -30˚ to 30˚
ELPLX02/ELPLX02W -16˚ to 16˚ -16˚ to 16˚
ELPLU03 -28˚ to 28˚ -28˚ to 28˚
ELPLU04/ELPLU02 -31˚ to 31˚ -30˚ to 30˚
ELPLR04 -31˚ to 31˚ -30˚ to 30˚
ELPLW05 -41˚ to 41˚ -30˚ to 30˚
ELPLW06/ELPLW04 -41˚ to 41˚ -30˚ to 30˚
ELPLW08 -35˚ to 35˚ -30˚ to 30˚
ELPLM10/ELPLM06 -45˚ to 45˚ -30˚ to 30˚
ELPLM11/ELPLM07 -45˚ to 45˚ -30˚ to 30˚
ELPLL08/ELPLL07 -45˚ to 45˚ -30˚ to 30˚
Curved Surface
s
"Curved Surface" p.69
The values in the table are the minimum values for R/L in the illustration.
(Approximate value when projecting at maximum zoom. ELPLR04 does not
support lens shift.)
EB-L1755U/EB-L1750U/EB-L1505UH/EB-L1500UH/EB-L1495U/EB-
L1490U
Horizontally curved surface (concave)
L
R
A
Screen
B
Center of the circle of which the
curved surface is an arc
L Projection distance
R Radius of the circle of which the
curved surface is an arc
Top view
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM15/ELPLM09/
ELPLS04
0.27 0.28
ELPLX02/ELPLX02W - 2.84
ELPLU03 0.40 0.40
ELPLU04/ELPLU02 0.45 0.53
ELPLR04 0.43 -
ELPLW05 0.41 0.41
ELPLW06/ELPLW04 0.33 0.34
ELPLW08 0.39 0.40
ELPLM10/ELPLM06 0.19 0.20
Adjustment Range for Projected Images
263
