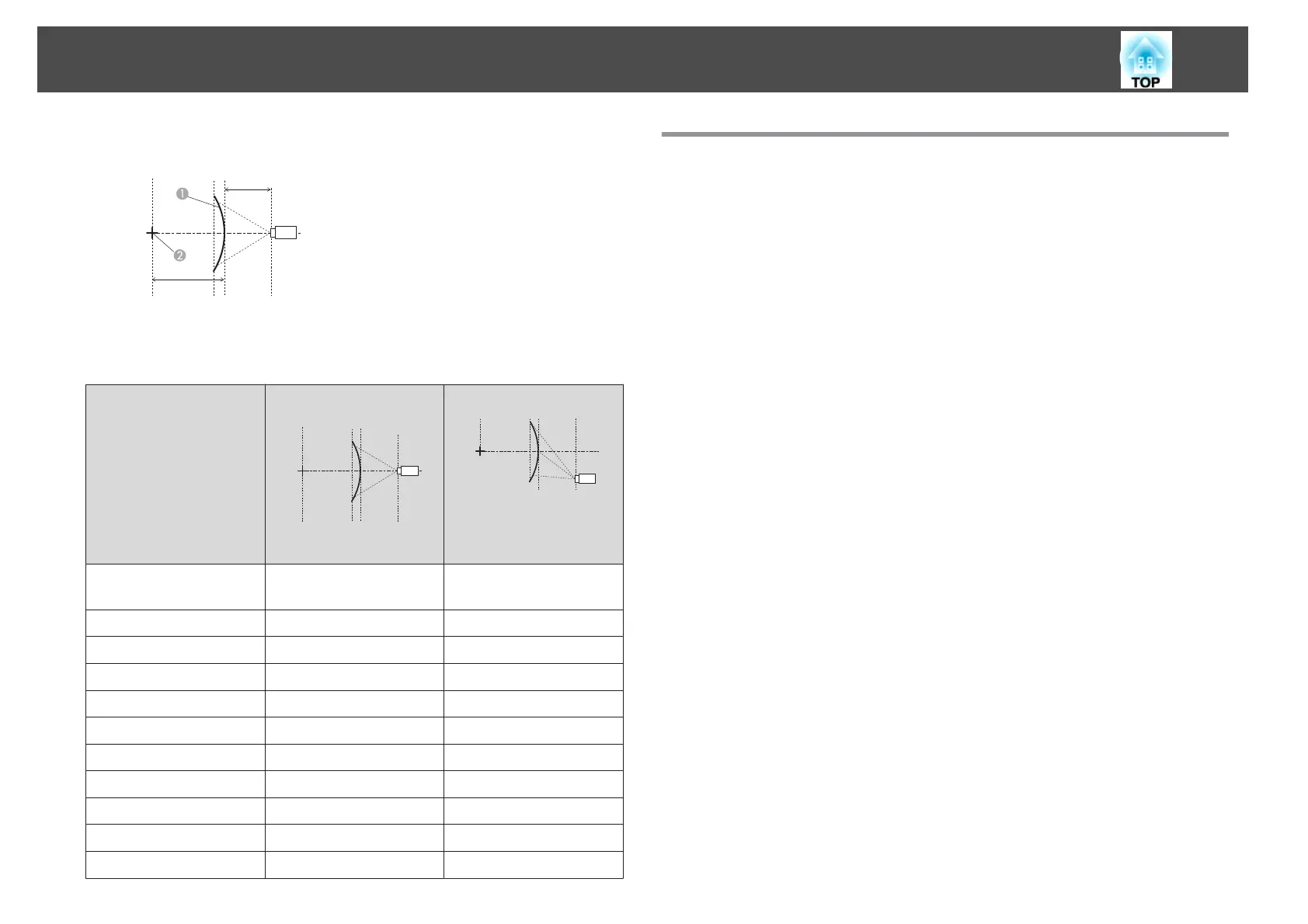

Vertically curved surface (convex)
L
R
A
Screen
B
Center of the circle of which the
curved surface is an arc
L Projection distance
R Radius of the circle of which the
curved surface is an arc
Side view
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM15/ELPLM09/
ELPLS04
0.26 0.32
ELPLX02/ELPLX02W - 3.52
ELPLU03 0.76 0.79
ELPLU04/ELPLU02 1.02 1.27
ELPLR04 0.87 -
ELPLW05 0.75 0.77
ELPLW06/ELPLW04 0.38 0.47
ELPLW08 0.63 0.78
ELPLM10/ELPLM06 0.16 0.19
ELPLM11/ELPLM07 0.11 0.12
ELPLL08/ELPLL07 0.08 0.08
Corner Wall
s "Corner Wall" p.73
The α in the figure is the maximum angle in which the projector can move.
See the table below for detailed values. (Approximate value when projecting
at maximum zoom. ELPLR04 does not support lens shift.)
Adjustment Range for Projected Images
269
