Epson EB-L1505UH User Manual

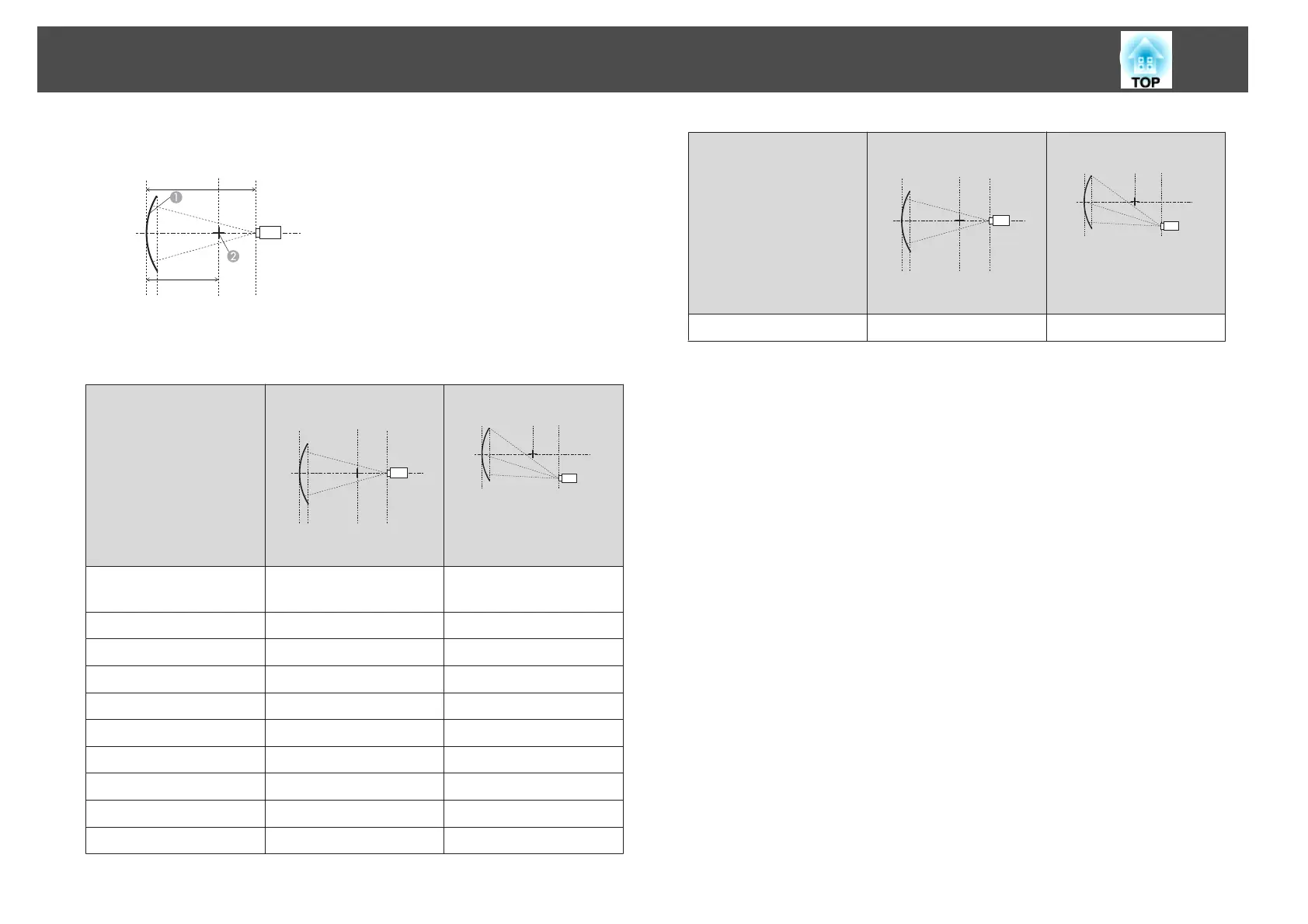

Vertically curved surface (concave)
L
R
A
Screen
B
Center of the circle of which the
curved surface is an arc
L Projection distance
R Radius of the circle of which the
curved surface is an arc
Side view
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM15/ELPLM09/
ELPLS04
0.19 0.22
ELPLX02/ELPLX02W - 1.90
ELPLU03 0.30 0.31
ELPLU04/ELPLU02 0.37 0.55
ELPLR04 0.35 -
ELPLW05 0.33 0.34
ELPLW06/ELPLW04 0.24 0.29
ELPLW08 0.31 0.40
ELPLM10/ELPLM06 0.13 0.15
ELPLM11/ELPLM07 0.10 0.11
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLL08/ELPLL07 0.07 0.08
Adjustment Range for Projected Images
268
