Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLL08/ELPLL07 0.10 0.10
Horizontally curved surface (convex)
L
R
A
Screen
B
Center of the circle of which the
curved surface is an arc
L Projection distance
R Radius of the circle of which the
curved surface is an arc
Top view
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM15/ELPLM09/
ELPLS04
0.52 0.54
ELPLX02/ELPLX02W - 3.52
ELPLU03 3.52 3.52
ELPLU04/ELPLU02 2.22 2.32
ELPLR04 1.90 -
ELPLW05 1.62 1.63
ELPLW06/ELPLW04 0.79 0.81
ELPLW08 1.33 1.37
ELPLM10/ELPLM06 0.29 0.30
ELPLM11/ELPLM07 0.19 0.19
ELPLL08/ELPLL07 0.12 0.12

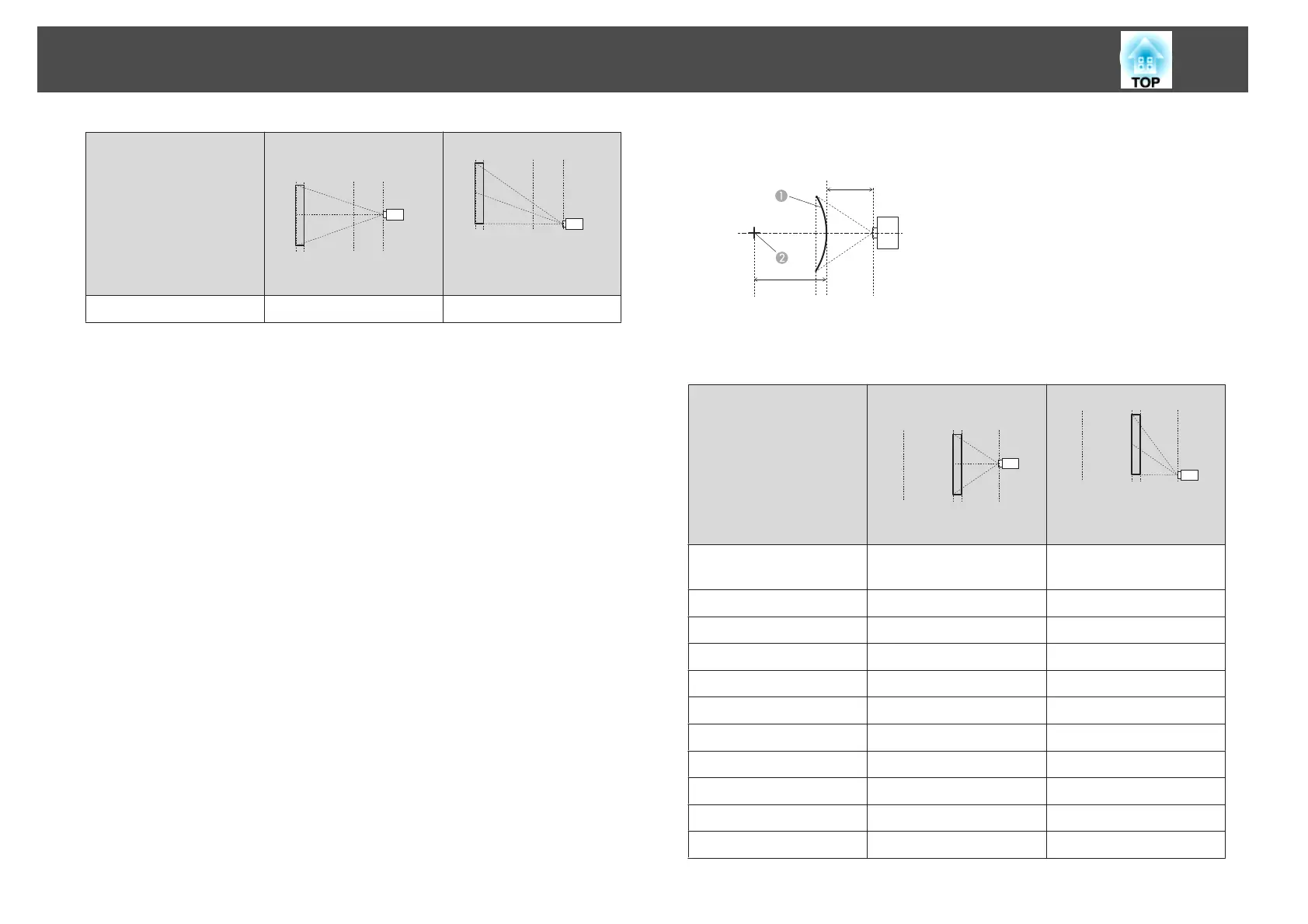

Adjustment Range for Projected Images
