Epson EB-L1505UH User Manual

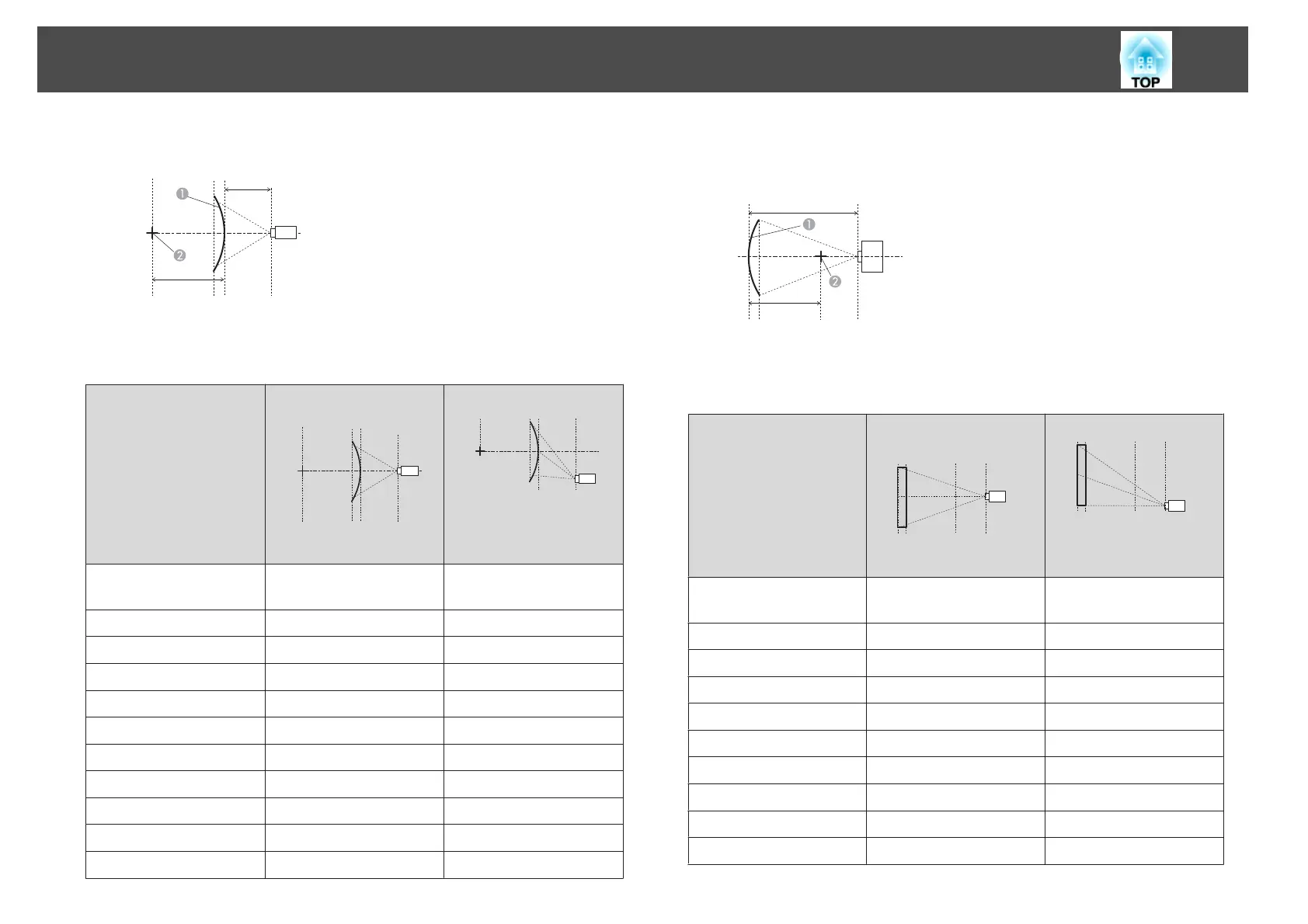

Vertically curved surface (convex)
L
R
A
Screen
B
Center of the circle of which the
curved surface is an arc
L Projection distance
R Radius of the circle of which the
curved surface is an arc
Side view
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM15/ELPLM09/
ELPLS04
0.28 0.33
ELPLX02/ELPLX02W - 3.52
ELPLU03 0.87 0.92
ELPLU04/ELPLU02 1.10 1.29
ELPLR04 0.94 -
ELPLW05 0.82 0.85
ELPLW06/ELPLW04 0.41 0.48
ELPLW08 0.68 0.80
ELPLM10/ELPLM06 0.16 0.19
ELPLM11/ELPLM07 0.11 0.12
ELPLL08/ELPLL07 0.08 0.08
EB-L1715S/EB-L1710S/EB-L1515S/EB-L1510S
Horizontally curved surface (concave)
L
R
A
Screen
B
Center of the circle of which the
curved surface is an arc
L Projection distance
R Radius of the circle of which the
curved surface is an arc
Top view
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM15/ELPLM09/
ELPLS04
0.27 0.28
ELPLX02/ELPLX02W - 2.68
ELPLU03 0.41 0.41
ELPLU04/ELPLU02 0.46 0.66
ELPLR04 0.43 -
ELPLW05 0.41 0.41
ELPLW06/ELPLW04 0.33 0.33
ELPLW08 0.39 0.44
ELPLM10/ELPLM06 0.19 0.20
ELPLM11/ELPLM07 0.14 0.14
Adjustment Range for Projected Images
266
