Epson EB-L1505UH User Manual

EB-L1755U/EB-L1750U/EB-L1505UH/EB-L1500UH/EB-L1495U/EB-
L1490U

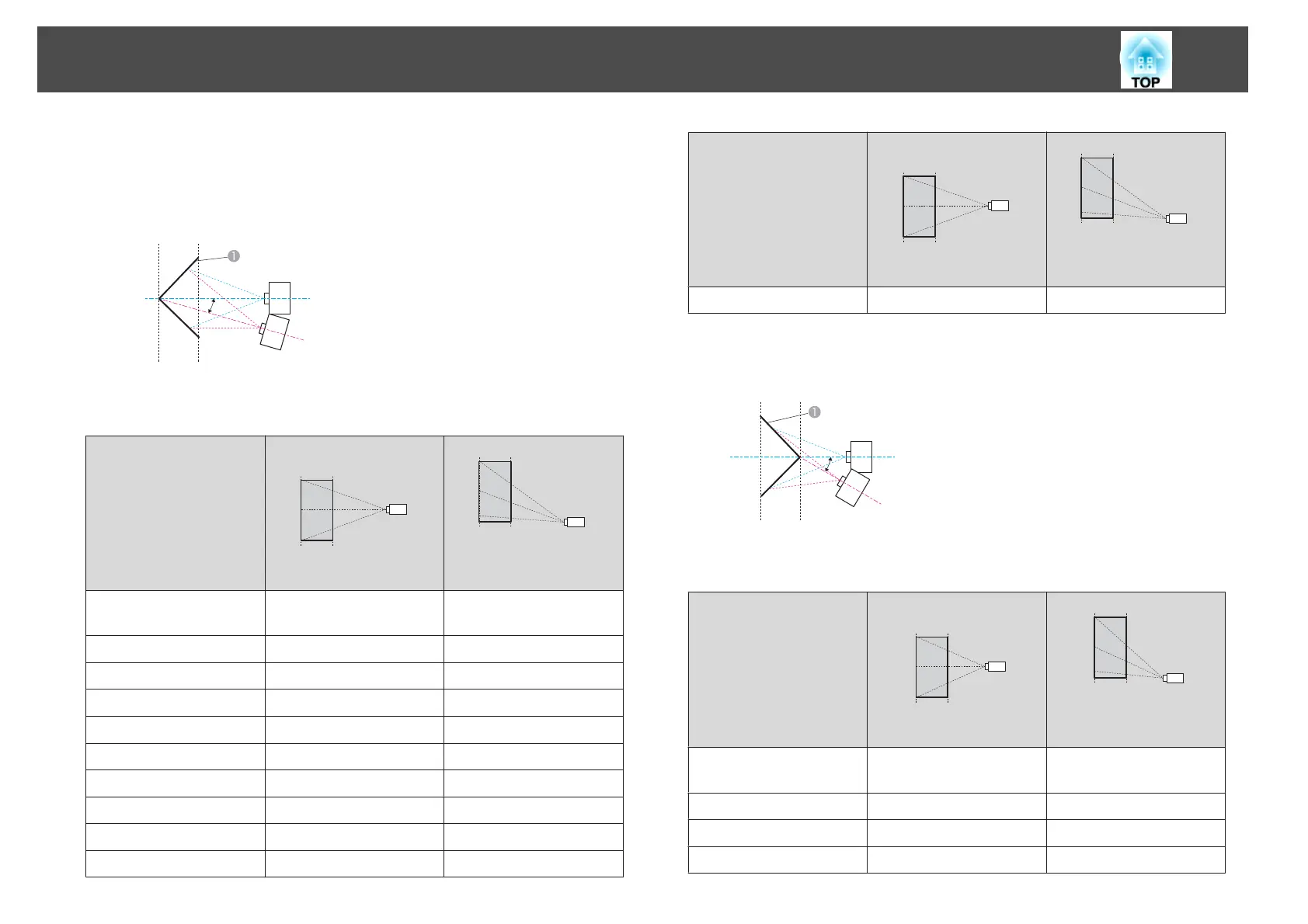

Concave horizontal corner correction (correction to bilateral symmetry by
using corners as the center line)
Ș
A
Screen
α Angle of possible projector
motion
Top view
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM15/ELPLM09/
ELPLS04
31˚ 25˚
ELPLX02/ELPLX02W - -
ELPLU03 30˚ 23˚
ELPLU04/ELPLU02 29˚ 11˚
ELPLR04 30˚ -
ELPLW05 30˚ 24˚
ELPLW06/ELPLW04 32˚ 21˚
ELPLW08 31˚ 16˚
ELPLM10/ELPLM06 30˚ 30˚
ELPLM11/ELPLM07 29˚ 29˚
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLL08/ELPLL07 29˚ 28˚
Convex horizontal corner correction (correction to bilateral symmetry by
using corners as the center line)
Ș
A
Screen
α Angle of possible projector
motion
Top view
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM15/ELPLM09/
ELPLS04
15˚ 15˚
ELPLX02/ELPLX02W - -
ELPLU03 1˚ 1˚
ELPLU04/ELPLU02 0˚ *
Adjustment Range for Projected Images
270
