Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLR04 1Ëš -
ELPLW05 3Ëš 3Ëš
ELPLW06/ELPLW04 11Ëš 11Ëš
ELPLW08 5Ëš 5Ëš
ELPLM10/ELPLM06 19Ëš 19Ëš
ELPLM11/ELPLM07 22Ëš 21Ëš
ELPLL08/ELPLL07 23Ëš 23Ëš
*Cannot be corrected accurately. Move the lens position to the home position.
Concave vertical corner correction (correction to horizontal symmetry by
using corners as the center line)
Ș
A
Screen
α Angle of possible projector
motion
Side view
Lens type Vertical lens shift:
Home position
Ș
Side view
Vertical lens shift: Top
Ș
Side view
ELPLM15/ELPLM09/
ELPLS04
29Ëš 14Ëš
ELPLX02/ELPLX02W - -
ELPLU03 32Ëš 20Ëš
ELPLU04/ELPLU02 33Ëš 2Ëš
ELPLR04 32Ëš -
ELPLW05 32Ëš 21Ëš
ELPLW06/ELPLW04 31Ëš 13Ëš
ELPLW08 32Ëš 9Ëš
ELPLM10/ELPLM06 25Ëš 16Ëš
ELPLM11/ELPLM07 24Ëš 17Ëš
ELPLL08/ELPLL07 23Ëš 19Ëš

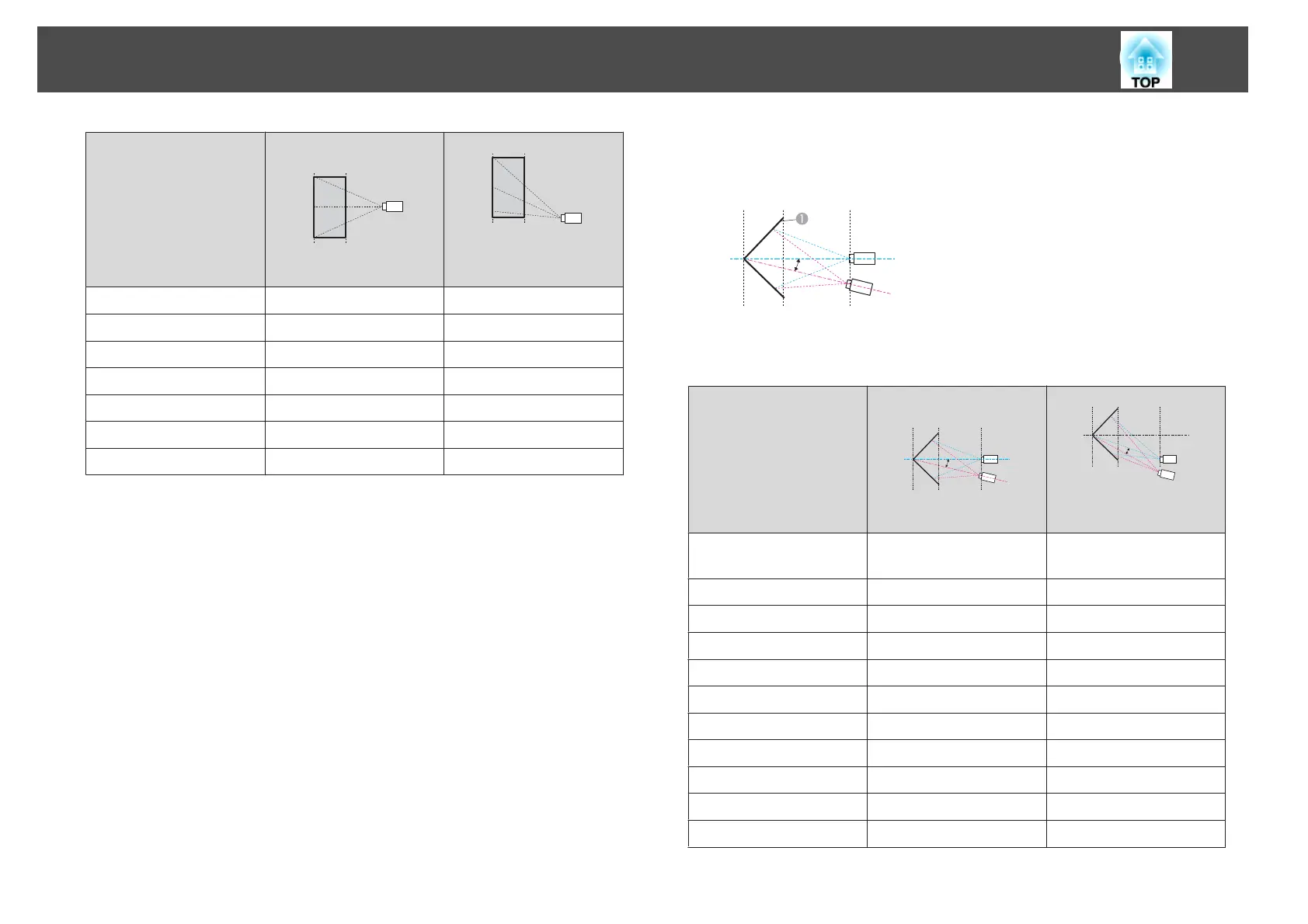

Adjustment Range for Projected Images
