When using the ELPLU04/ELPLW06/ELPLW08/ELPLM09/ELPLM10/
ELPLM11/ELPLM15/ELPLL08

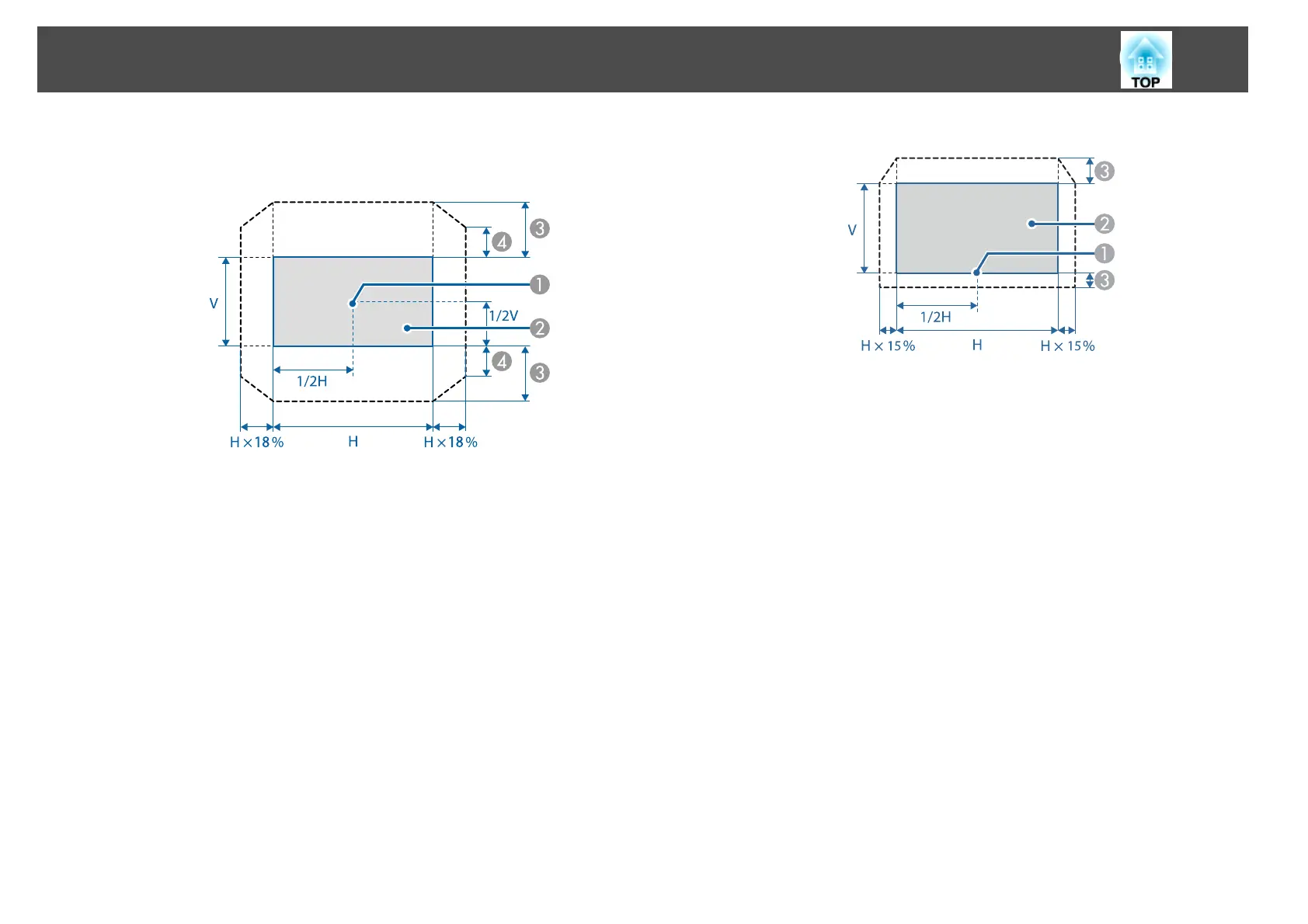

A
Center of lens
B
Projected image when the lens position is moved to the home
position
C
Maximum motion range: V x 60%
D
When the horizontal direction is at the maximum value: V x 31%
When using the ELPLX02/ELPLX02W
A
Center of lens
B
Projected image when the lens position is moved to the home
position
C
Maximum motion range: V x 20% (Top), V x 5% (Bottom)
*
* When the horizontal direction is at the maximum value, the image
cannot be moved upward.
Installing the Projector
35
To Next Page
