(2) Select a combination of R (red), G (green), and B (blue) for the grid color.
R/G/B: Displays a combination all three colors; red, green and blue. The
actual color of the grid is white.
R/G: This is available when R is selected from Select Color. Displays a
combination of two colors; red and green. The actual color of the grid is
yellow.
G/B: This is available when B is selected from Select Color. Displays a
combination of two colors; green and blue. The actual color of the grid is
cyan.
(3) Press the [Esc] button to return to the previous screen.
g
Select Start Adjustments, and then press the [ ] button.
First, select Shift the whole panel and adjust the whole LCD panel.
When the start confirmation message is displayed, press the [
]
button to start adjustment.
a
The image may become distorted while adjusting. The image is
restored once adjustments are complete.
h
Use the [ ][ ][ ][ ] buttons to make adjustments, and then
press the [
] button.
i
To perform more detailed adjustments, select Adjust the four
corners, and then press the [
] button to confirm.
j
Use the [ ], [ ], [ ], and [ ] buttons to make adjustments, and
then press the [
] button to move to the next adjustment point.
k

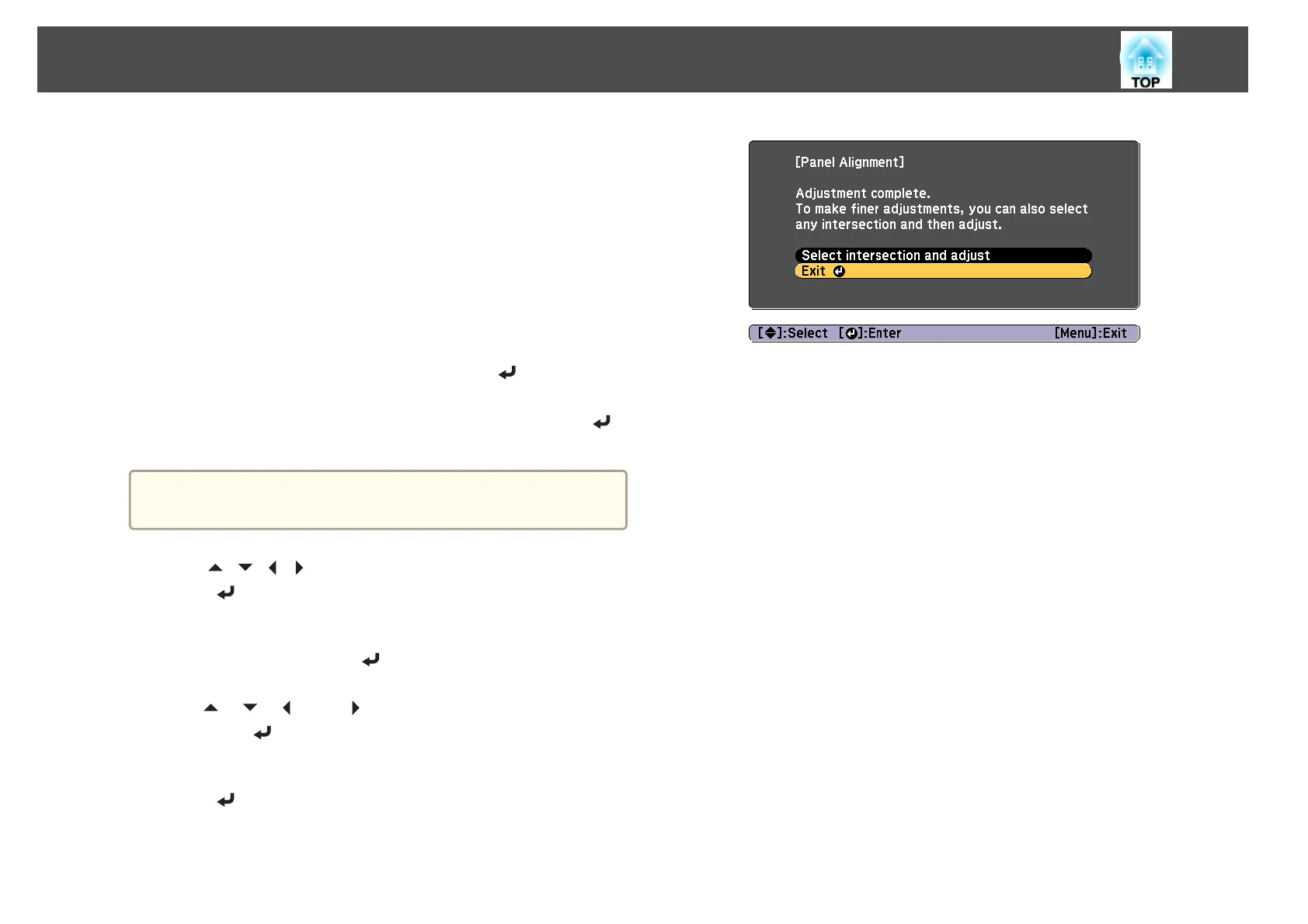

When you have adjusted all four corners, select Exit, and then
press the [
] button.
If you feel you still need to make adjustments after correcting all
four points, select Select intersection and adjust and then continue
making adjustments.
Image Maintenance
216
