Epson TM-C3500 User Manual

135
8

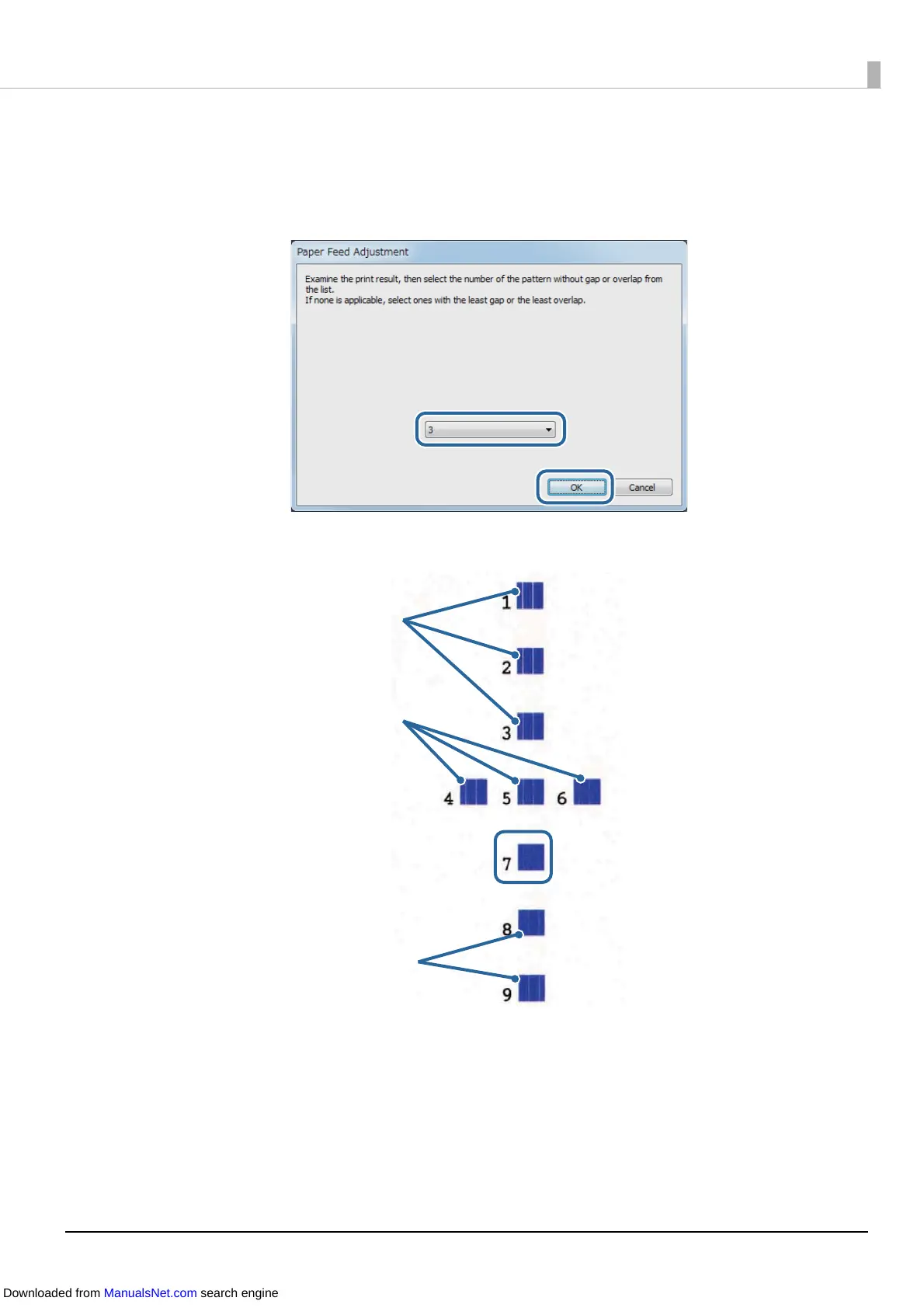

The adjustment sheet is printed and the Banding Adjustment screen
appears. Check the sheet and then select the number of the pattern with
the least gaps or overlapping and click OK.
Adjustment sheet print example (In the case of these patterns, select “7”.)
9
An adjustment start confirmation screen appears. Click Ye s .
10
When adjustment is complete, the Finish screen appears. Click OK.
White banding
Overlapping
White banding
Downloaded from ManualsNet.com search engine

Epson TM-C3500 Specifications

General

Print Resolution	720 x 360 dpi
Ink Colors	Cyan, Magenta, Yellow, Black
Ink Cartridges	Individual ink cartridges
Color	Yes
Print Speed	Up to 103 mm/sec
Media Types	Roll paper, Fanfold paper
Interface	USB, Ethernet
Dimensions	310 x 283 x 261 mm
Weight	12 kg
Cutter	Auto cutter
Media Width	25 - 112 mm
