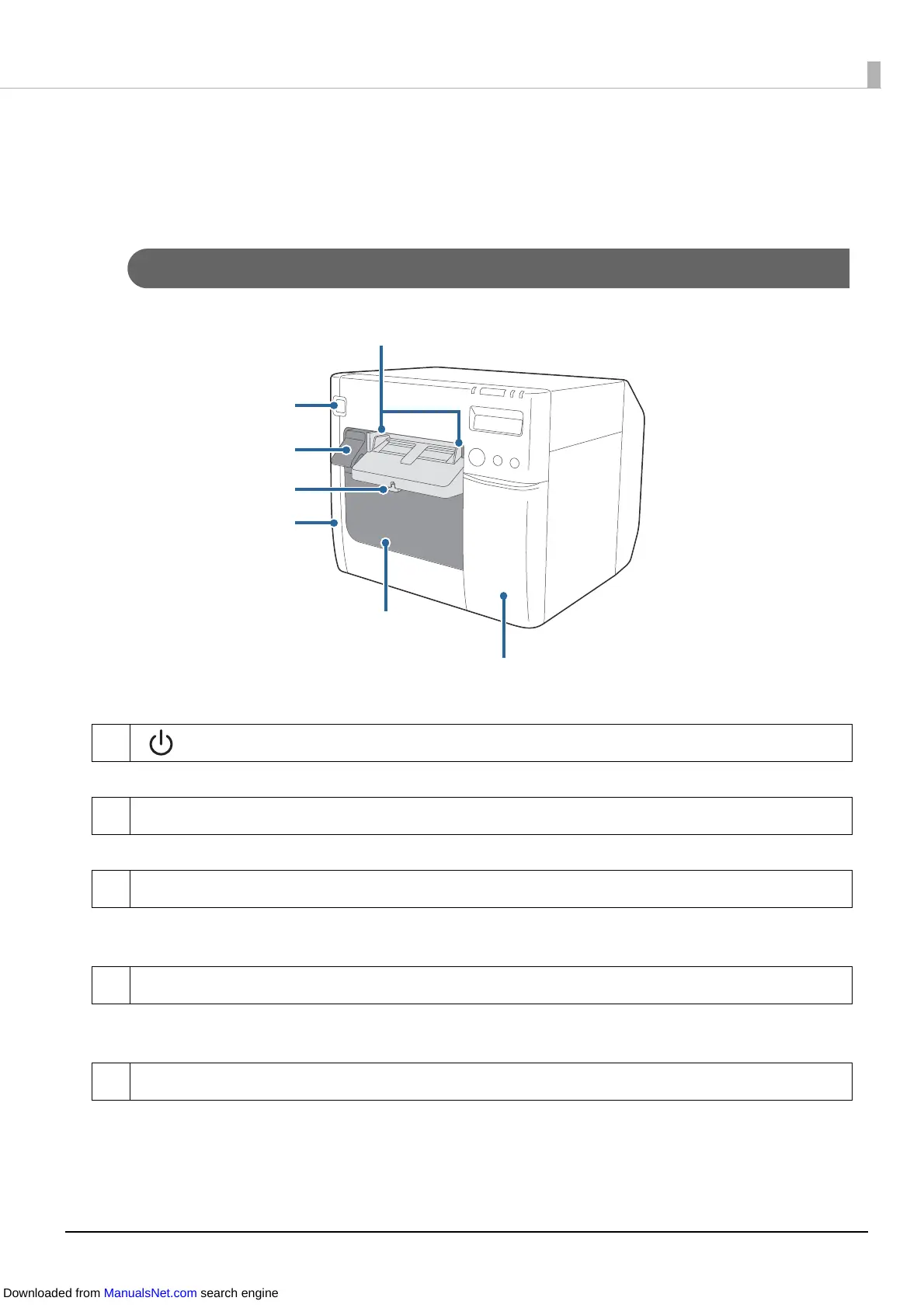

Part Names and Functions
This section describes the main operation parts.
Front
1 (power) button
Turns on/of f the printer. (U "Turning On/Off " on page 42)
2 Release lever
Pull this lever towards you to open the roll paper cover.
3 Lock lever (paper ejection guides)
Press down this lever to enable adjustment of the paper ejection guides.
Pull up this lever until it clicks into place to lock the paper ejection guides.
4 Maintenance box cover
Open this cover to install/replace the maintenance box. (U "Installing the Maintenance Box" on page
33)
5 Roll paper cover
Open this cover to load or replace roll paper or attach the fanfold paper guides. (U "Loading and
Replacing Roll Paper" on page 46, U "Loading and Replacing Fanfold Paper" on page 56)
1
2
3
4
5
6
7
