Epson TM-C3500 - Internal Parts and Roll Paper Guides

21

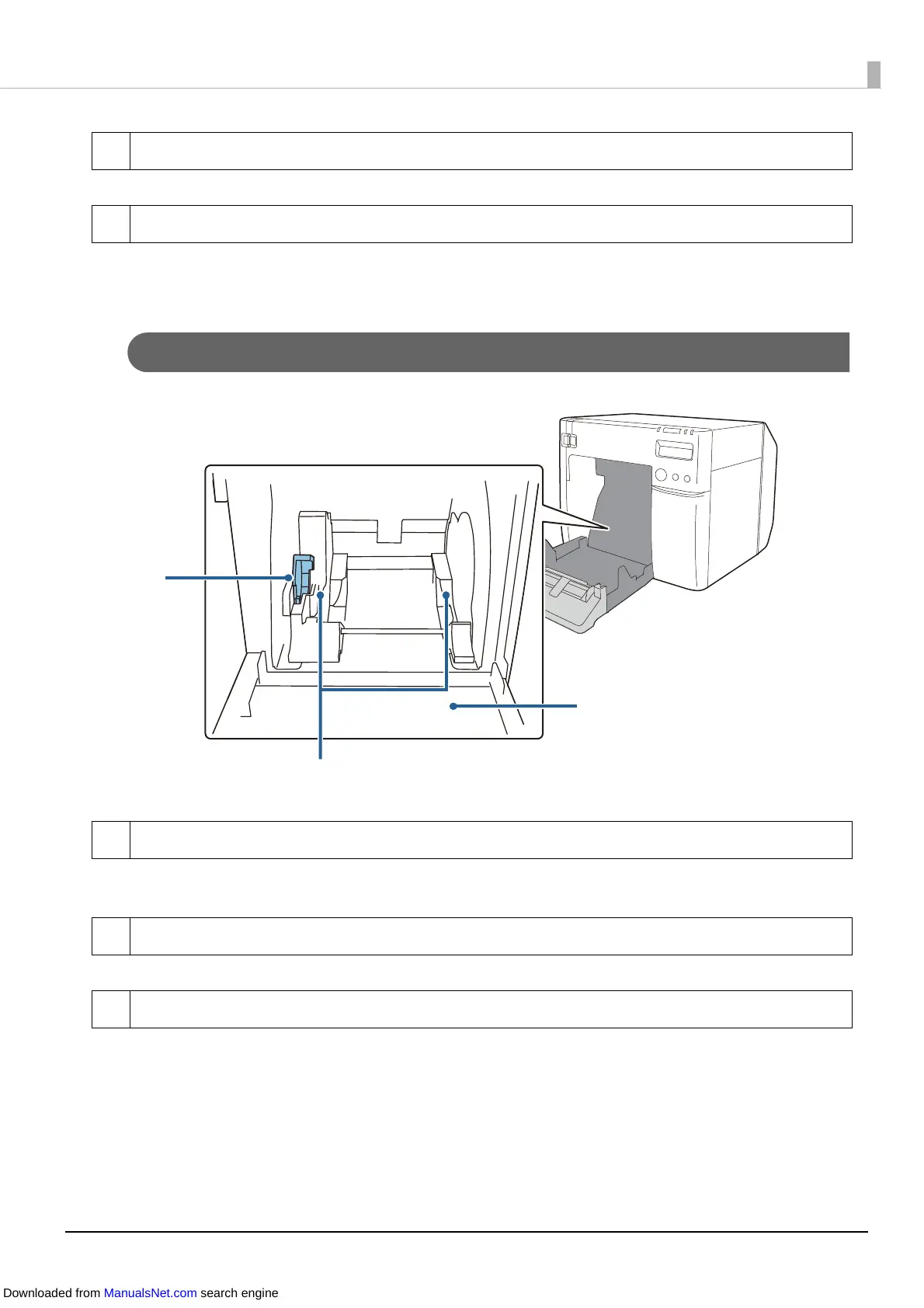

Inside
6 Ink cartridge cover
Open this cover to install/replace the ink cartridge. (U "Installing the Ink Cartridges" on page 35)
7 Paper ejection guides
These guides are for preventing the paper from getting out of position when ejected. Adjust them to
match the paper width.
1 Lock lever (roll paper guides)
Pull up this lever to enable adjustment of the roll paper guides.
Push down this lever to lock the roll paper guides.
2 Roll paper guides
These guides are for fixing the roll paper in place. Adjust them to match the paper width.
3Shutter
Adjust this to match the paper width. (U "Adjusting the Shutters" on page 66)
1
2
3
