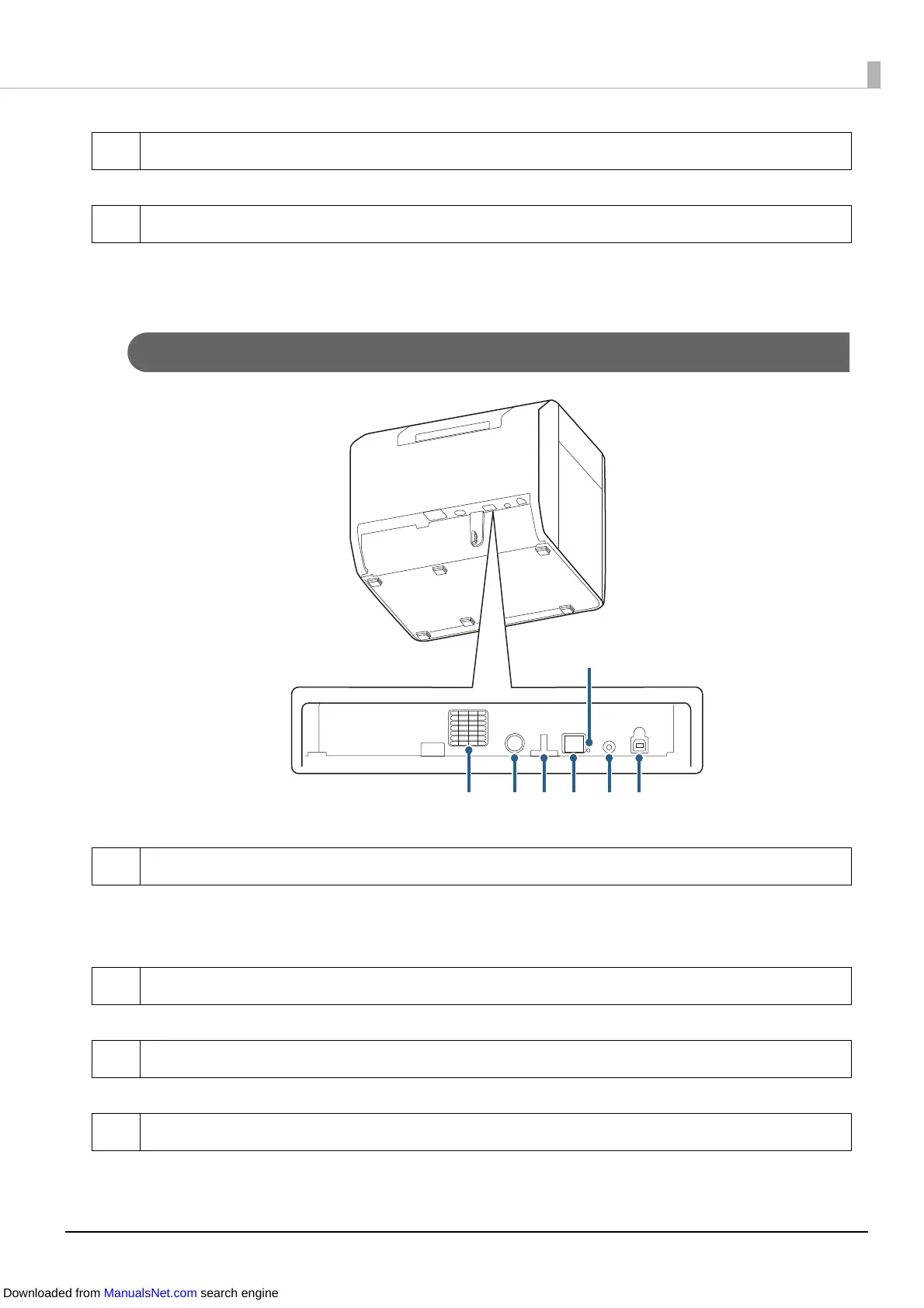

Connectors
3 Paper feed guide
Insert this in the roll paper cover to use fanfold paper.
4 Fanfold paper cover
Open this cover to load or replace the fanfold paper. (U "Loading and Replacing Fanfold Paper" on
page 56)
1Air vent
Exhausts heat generated in the printer to prevent the temperature inside the printer from rising.
Provide a clearance of 10 cm {3.93”} or more from the area around the air vent to ensure ventilation
when installing the printer.
2 DC-IN connector
Connect the cable of the AC adapter.
3 Wire saddle
Pass the USB cable through this saddle to prevent disconnection of the cable.
4 Ethernet connector
Connect a LAN cable.
1234
5
76
