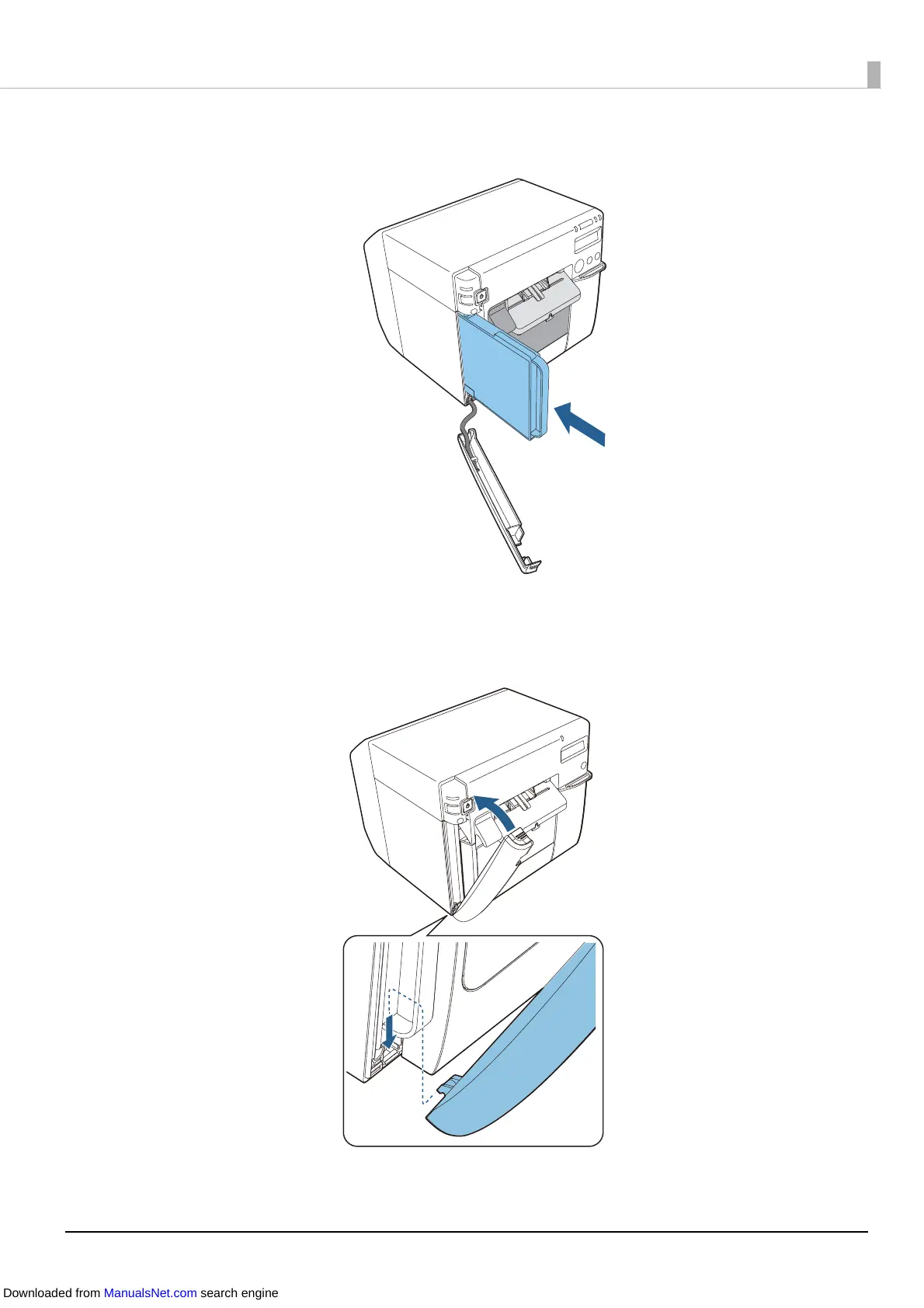

Push the maintenance box into the printer until it clicks into place.

Close the maintenance box cover.

Engage the hook of the cover with the printer, and then close the cover.
