5-24 Disassembly, Assembly, and Adjustments Rev. A
Sub-assembly L-(1)

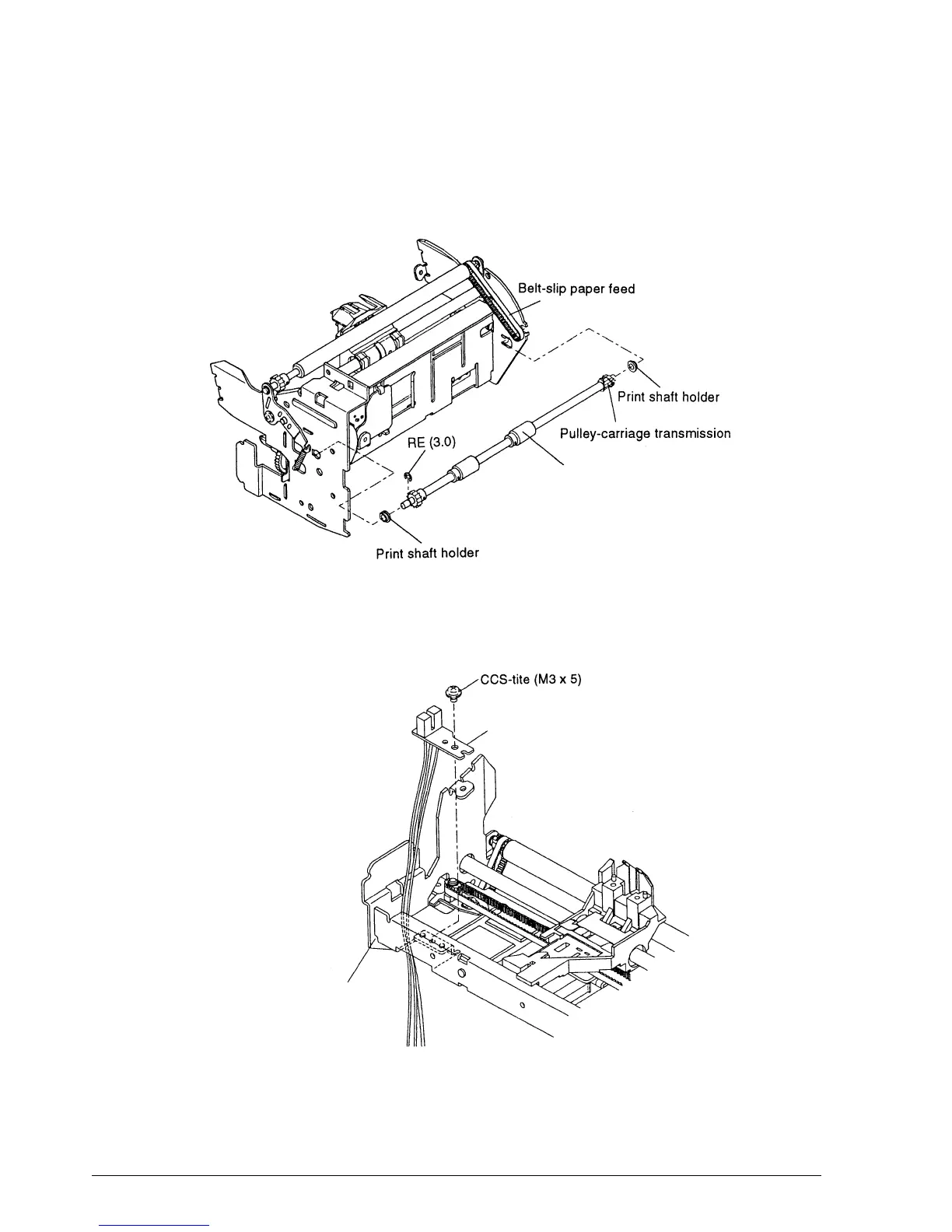

13. Engage the belt-slip paper feed on the pulley-carriage transmission. Mount the print shaft
holders and roller-sub slip paper hold assembly, and fasten with the RE.
14. Pass the wires through the frame-carriage assembly, attach the detector-H.P. sub-assembly
to the frame, and tighten the screw.
Roller-sub slip paper hold assembly
Detector-H.P. sub-assembly
Frame-carriage assembly
