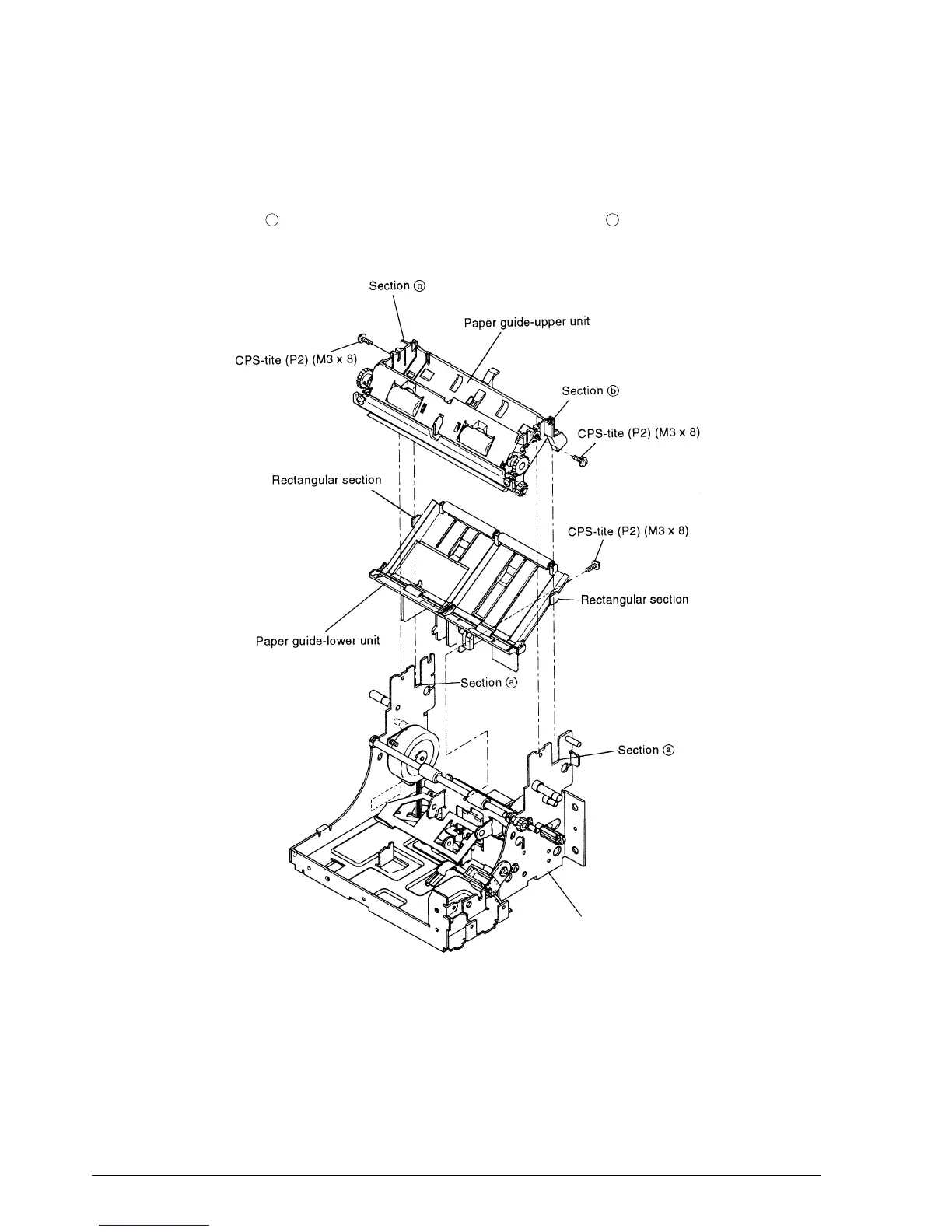

Main Assembly 1-2: Attachment of Lower and Upper Paper Guide Unit
1. Slide the rectangular section of the paper guide-lower unit into the frame-main assembly
and fasten the screw.
2. Align sections of the paper guide-upper unit with sections of the frame-main
assembly and fasten the screws.
b
a
Frame-main assembly
