Epson TM-U950 Technical Manual

Rev. A Disassembly, Assembly, and Adjustments 5-43
TM-U950/U950P Technical Manual

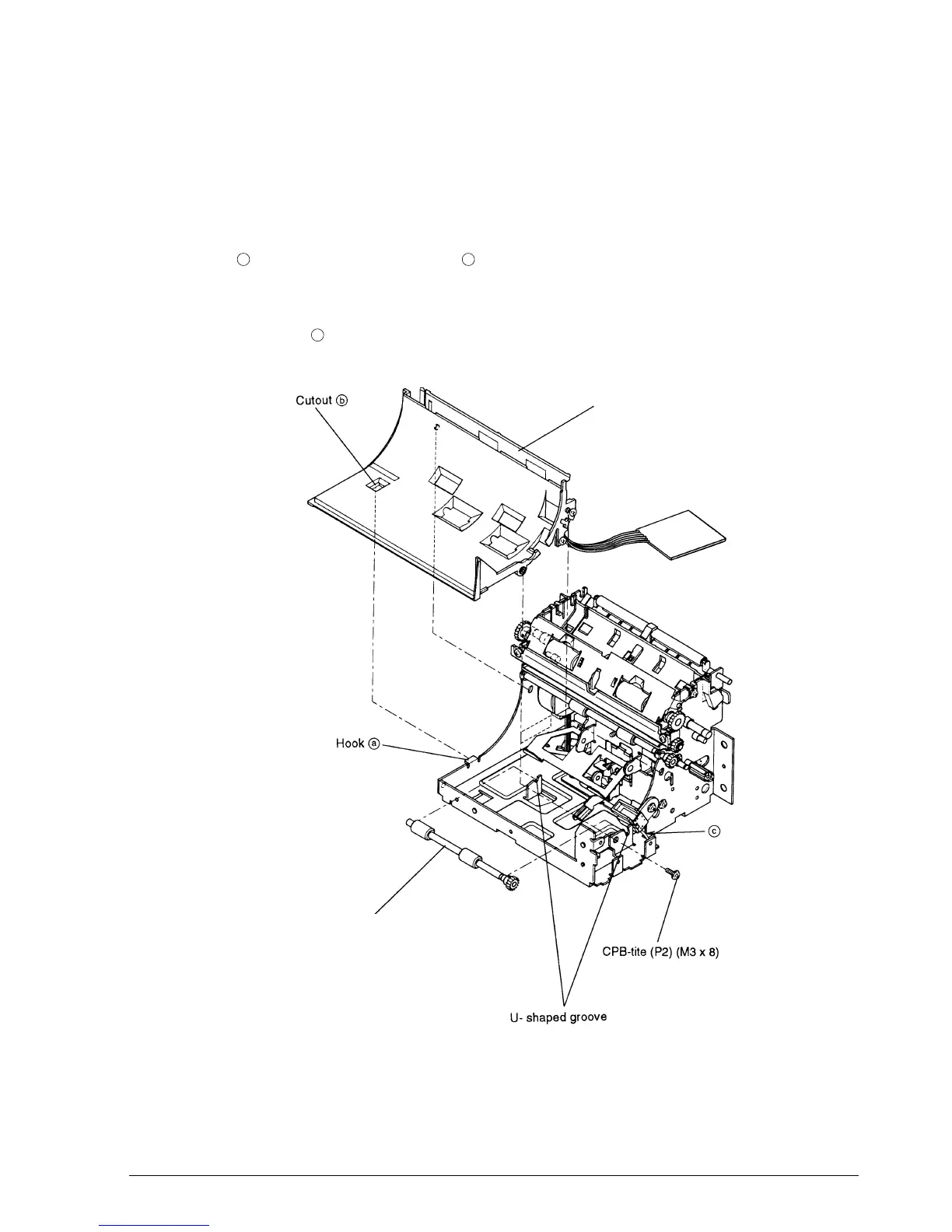

Main Assembly 1-3: Attachment of Paper Guide-Slip-Lower and Roller-Sub Slip Paper
Feed Assembly
1. Mount the roller-sub slip paper feed assembly in the U-shaped grooves of the frame-main
assembly.
2. Align the dowel and dowel hole of the paper guide-slip-lower assembly and engage
hook of the frame-main in cutout of the paper guide. Then slide the paper guide
into place and fasten it with the screw.
3. If the printer has a MICR reader, the cable for the MICR board will be coming out of the
section marked .
a
b
c
Paper guide-slip-lower assembly
Roller-sub slip paper feed assembly
