2-28 Mechanism Configuration and Operating Principles Rev. A
Memory map
This printer incorporates a 512 KB ROM (1 M in printers with an MICR reader, which is not
available for the TM-U950P) and 64 KB of RAM. The memory map is as shown below.

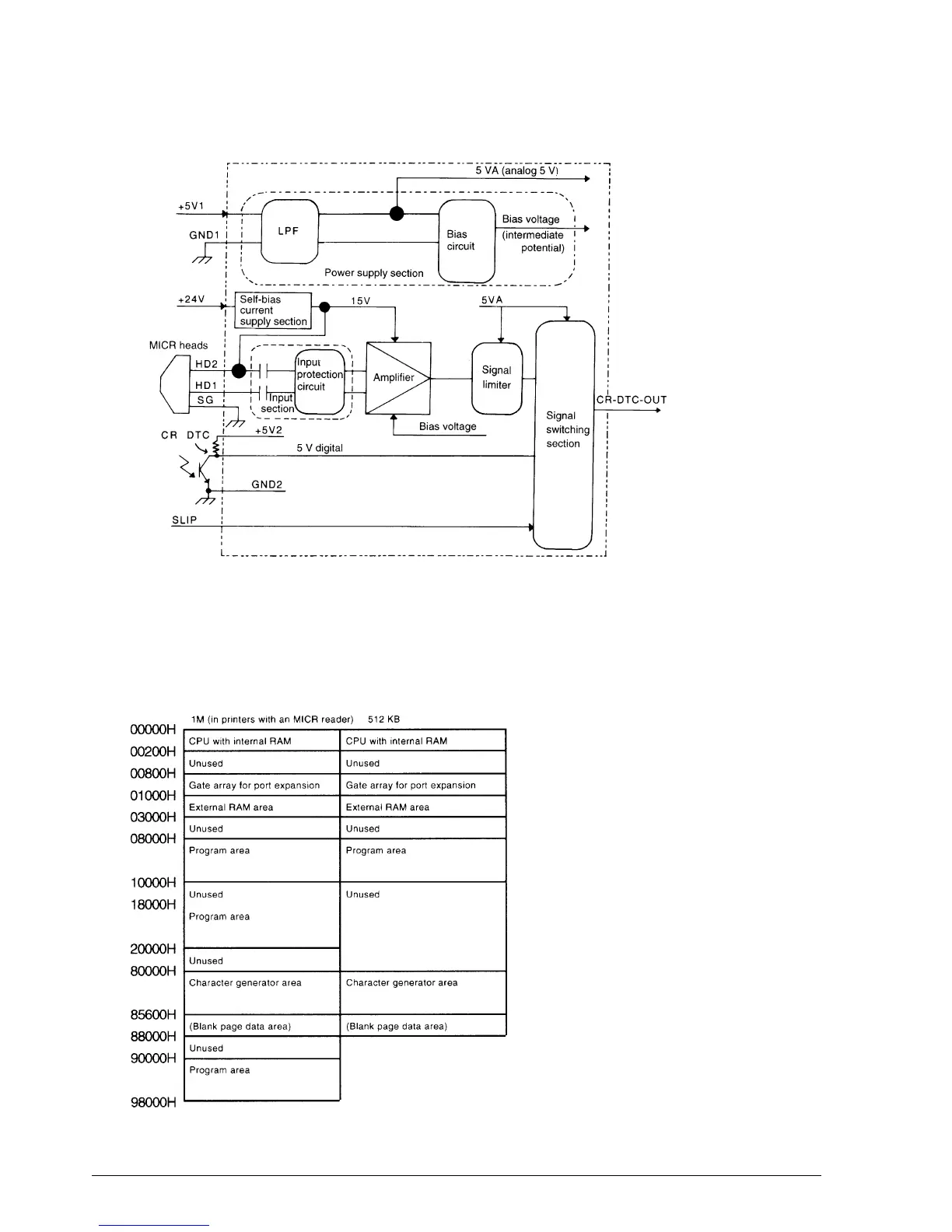

Figure 2-42. MICR Board Block Diagram (on printers with an MICR reader)
(not available for the TM-U950P)
Figure 2-43. Memory Map
