322 Eos Operations Manual

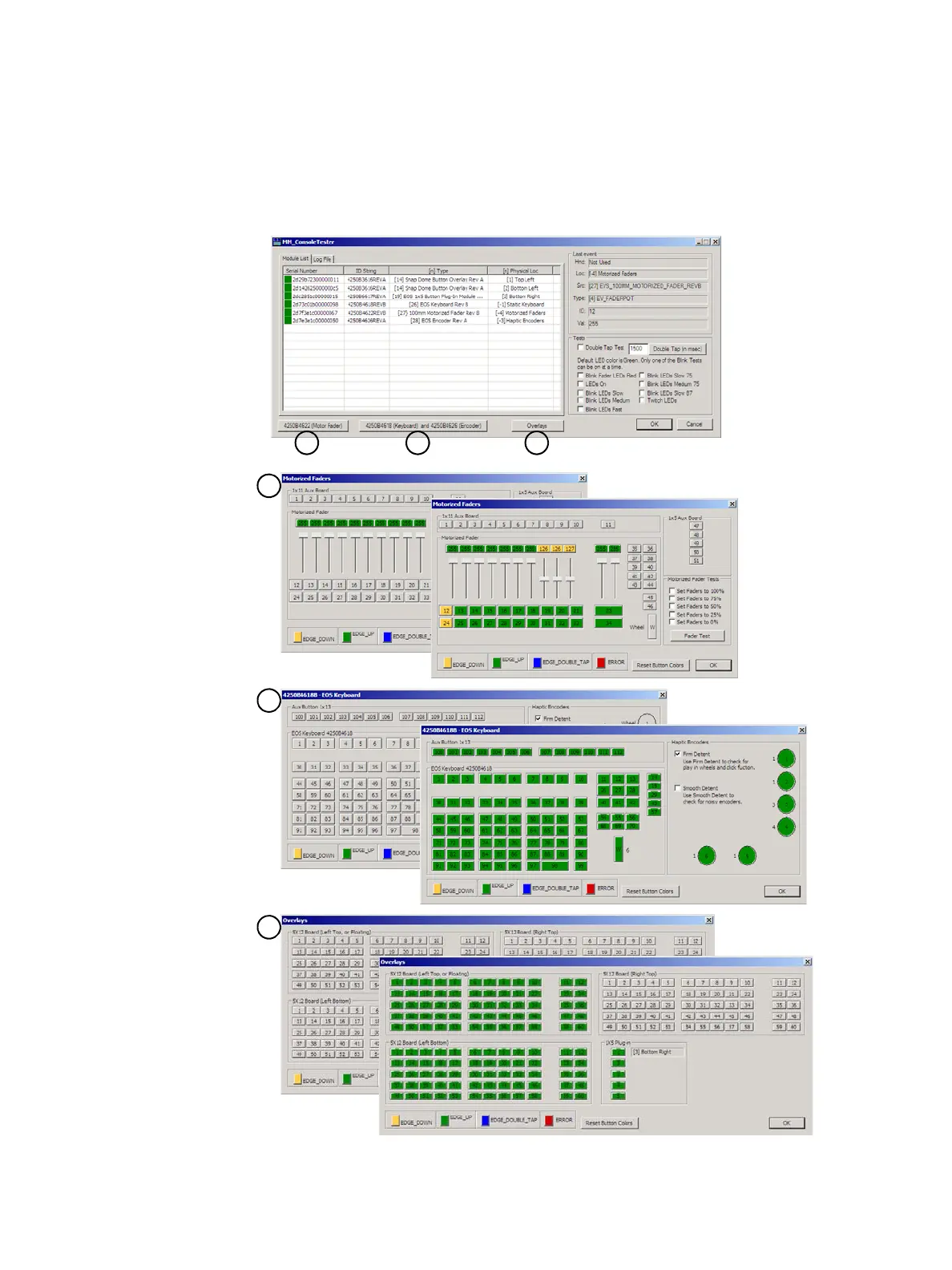

Face Panel Test...
Face Panel Test provides a way to verify the functional state of all of the keys, encoders and sliders
on the Eos console. The screens are very straightforward. For field diagnostics, you shouldn’t need
more than the three main sections of: Motorized Faders, Eos Keyboard and Overlays (assuming
you have the button modules (overlays) that fit over the touch screens).
Press/move every key and verify that those events register on the diagnostic test screen.
