4. Commissioning positioning systems
4−38
Festo P.BE−SPC200−WIN−PISA−CD−EN en 0901d

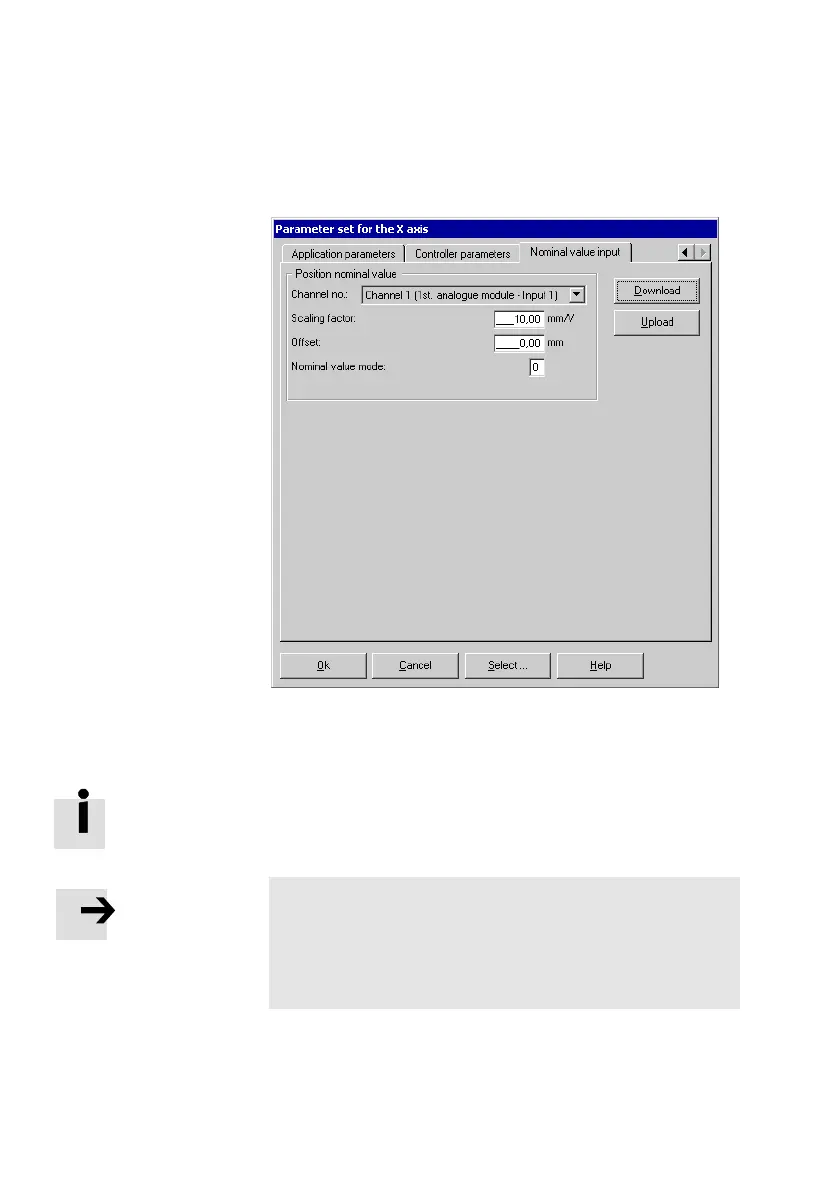

Fig.4/15: Configure the X axis, nominal value input
(example linear drive)
The values set here are valid during a system star t or after a
program reset until they are modified by one of the NC com
mands M10 to M14.
Please note
Modified data for the nominal value specification do not
become effective until after a program reset. When data
are downloaded, WinPISA automatically carries out a pro
gram reset (control signal required: 1−signal at ENAB LE).
