4. Commissioning positioning systems
4−26
Festo P.BE−SPC200−WIN−PISA−CD−EN en 0901d
4.3.2 Application parameters
The application parameters are configuration data which de
scribe default conditions of use. The application parameters
are the basis for the internal closed loop controller parame
trizing.
Set the application parameters on the Application par−
ameters" tab of the Parameter set for the .. −axis" dialogue
window.
Please note
Modified application data do not become effective until
after a program reset. During a download of application
data, WinPISA automatically carries out a program reset
(control signal required: 1−signal at ENABLE).

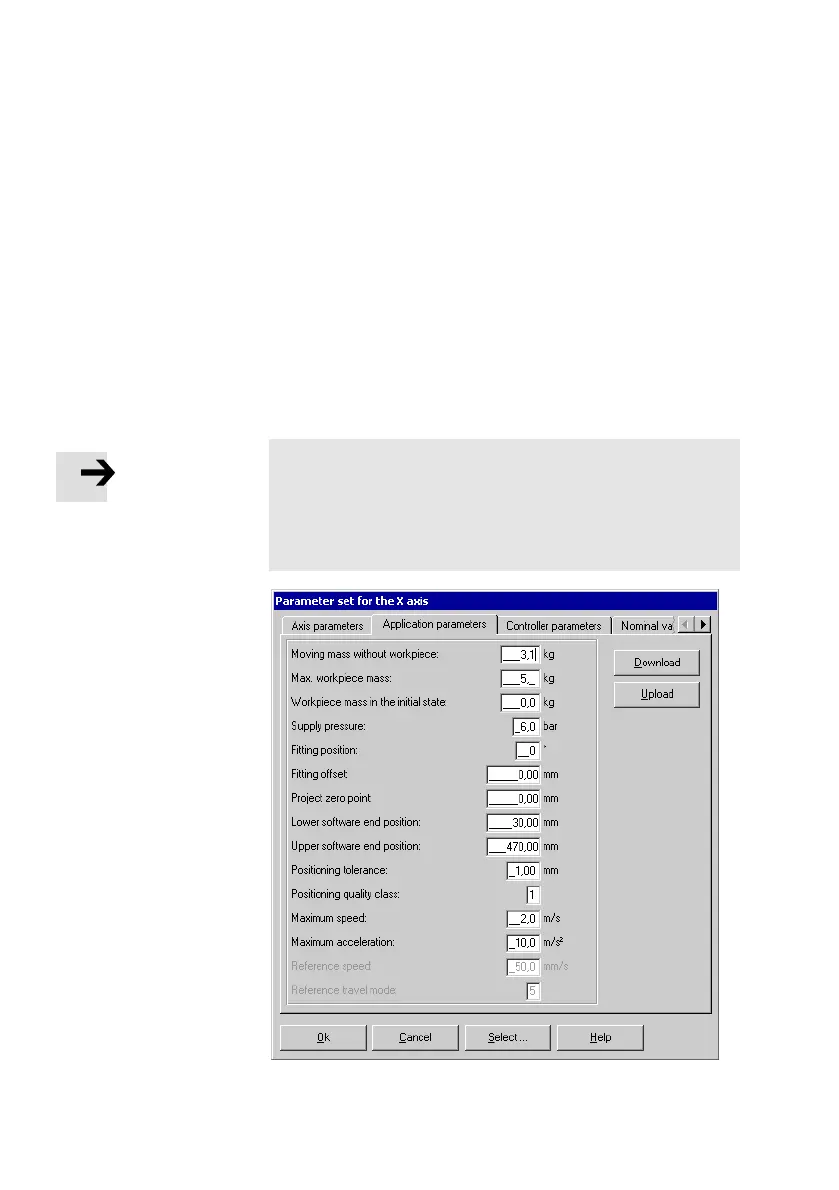

Fig.4/9: Configuring X axis, application parameters
(example linear drive)
