Festo SPC200 - Setting the Hardware Configuration (Offline)

4. Commissioning positioning systems
4−10
Festo P.BE−SPC200−WIN−PISA−CD−EN en 0901d
4.2.2 Setting the hardware configuration (Offline)
When you create a new project for a positioning system, mod
ify an existing system or when the SPC200 is not available (no
online connection), set the hardware configuration in the pro
ject window in accordance with the components available in
the positioning system.
The hardware configuration consists at least of:

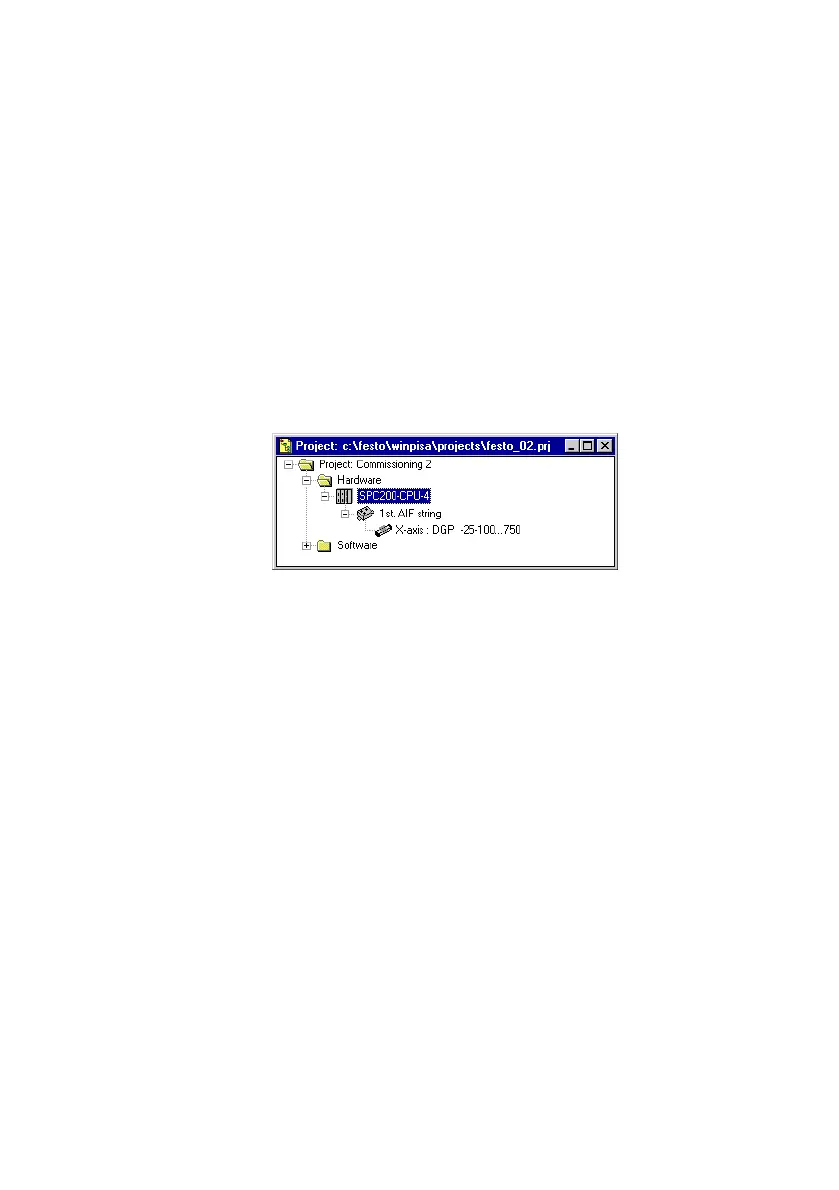

Fig.4/1: Minimum hardware configuration
an SPC200 with
a power supply module
a diagnostics module
a digital I/O module
a positioning axis.
