Conventions
Various parts of the program are identified in this manual by
the way in which they are written.
[File] [New ...] Menu entries are framed in square brackets, e.g. the com
mand [New project ...] opens a new project in the menu [File].
Cancel" Names of windows, dialogue windows and buttons, e.g.
Message window", Determine
project file", Cancel" as well
as designations e.g. DGPL−PPV−A−KF−B" are represented in
inverted commas.
N010 G00 X250 Programming examples are marked in a different print type,
e.g. N010 G00 X250".
CTRL Names of keys on the PC keyboard are represented in upper
case letters in the text. (e.g. ENTER, CTRL, C, F1, etc.).
CTRL + C Some functions require two
keys to be pressed simulta
neously. Hold e.g. the CTRL key pressed down and press the
C key as well. This is written in the text as CTRL+C.
The left mouse button is always meant if the manual refers to
clicking" or double−clicking". If the right−hand mouse but
ton is to be used,
this will be mentioned in the text.

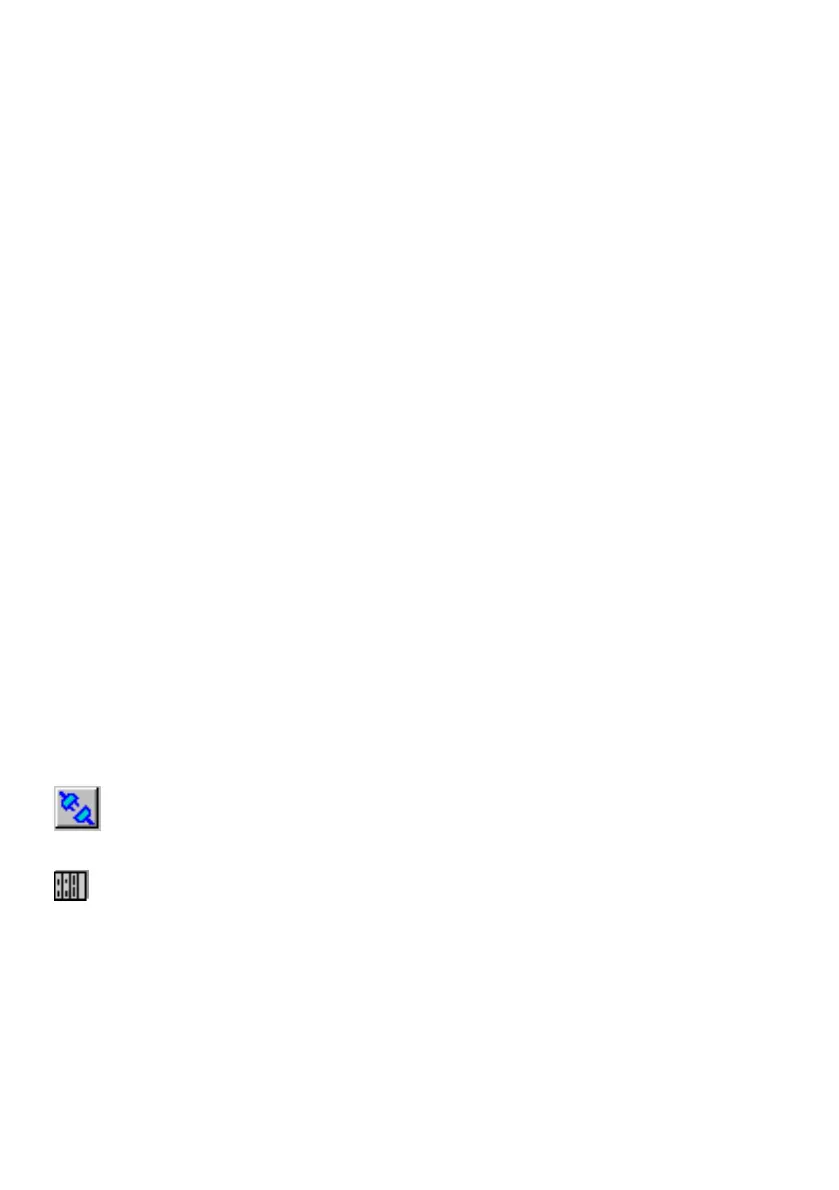

Many functions in WinPISA can be executed by clicking on a
button in the toolbar. This button will be shown adjacent to
the text (e.g. the Online mode on" button).
A few actions depend on the symbol selected in the project
window. This symbol will be
shown adjacent to the text
(e.g.the Hardware symbol).
