BREAK: Allows to switch ON/OFF the transmission of the BREAK condition. ON means to ransmit
BREAK conditions through RSIP, OFF ignore the BREAK conditions. In this case BREAK
conditions will appear as zero bytes in data stream.
Examples:
RSIP ON RS: Enable RS<->IP
RSIP UDP RS: Select UDP mode
RSIP IN 5000 RS: Means to select port 5000 for the reception of serial data packets
RSIP OUT 172.16.53.1:5000 RS: Select IP address 172.16.53.1 and port 5000 as address of the
remote system where serial data will be transferred to. Only packets from this address will be
accepted when received on listen port.

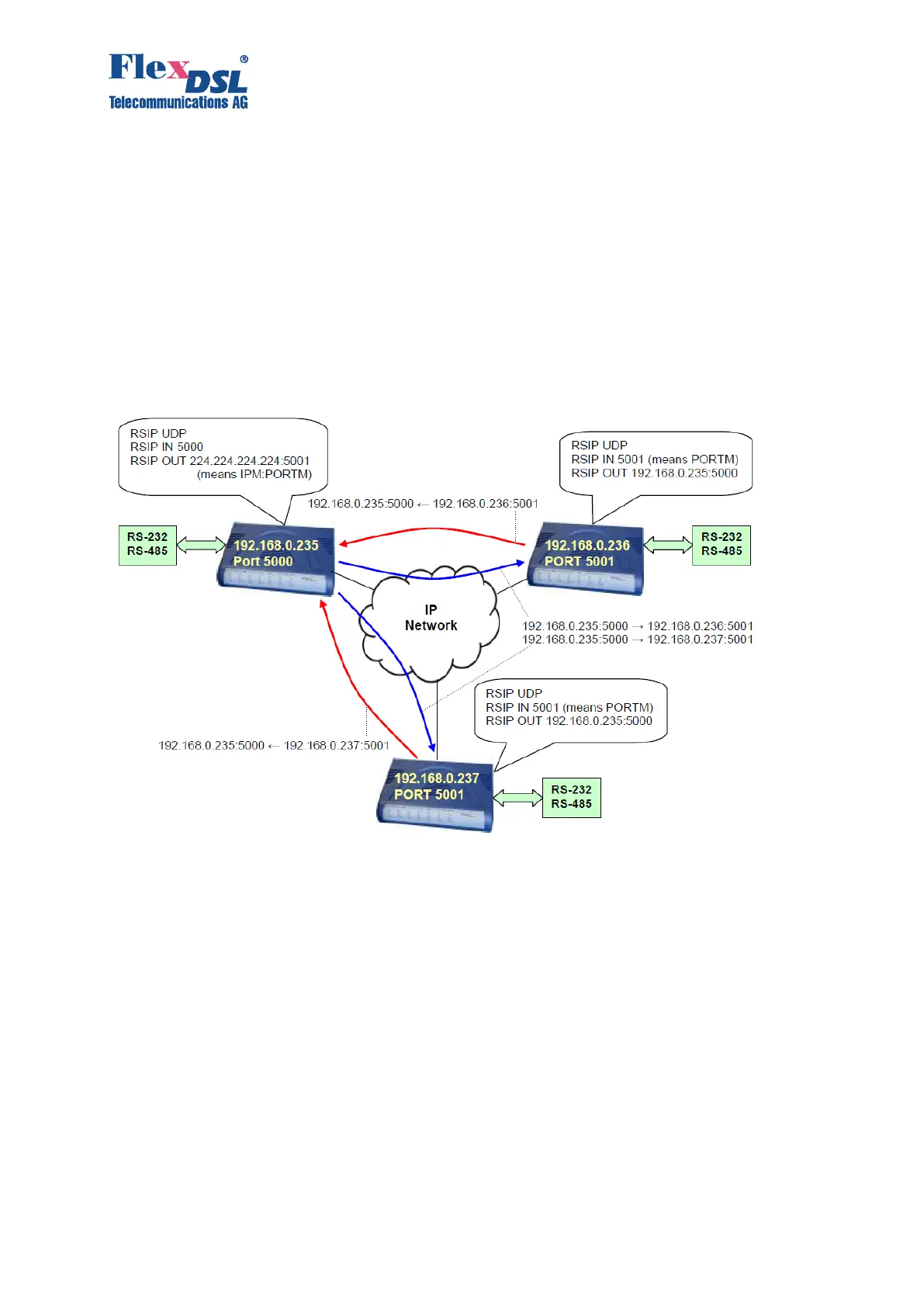

UDP Point to Multipoint (Multicast addresses are IP addresses in the range from 224.0.0.0 to
239.255.255.255):
UDP Broadcast
