FlexDSL ORION 3 - Connector Description

User Manual LTU Orion 3
149

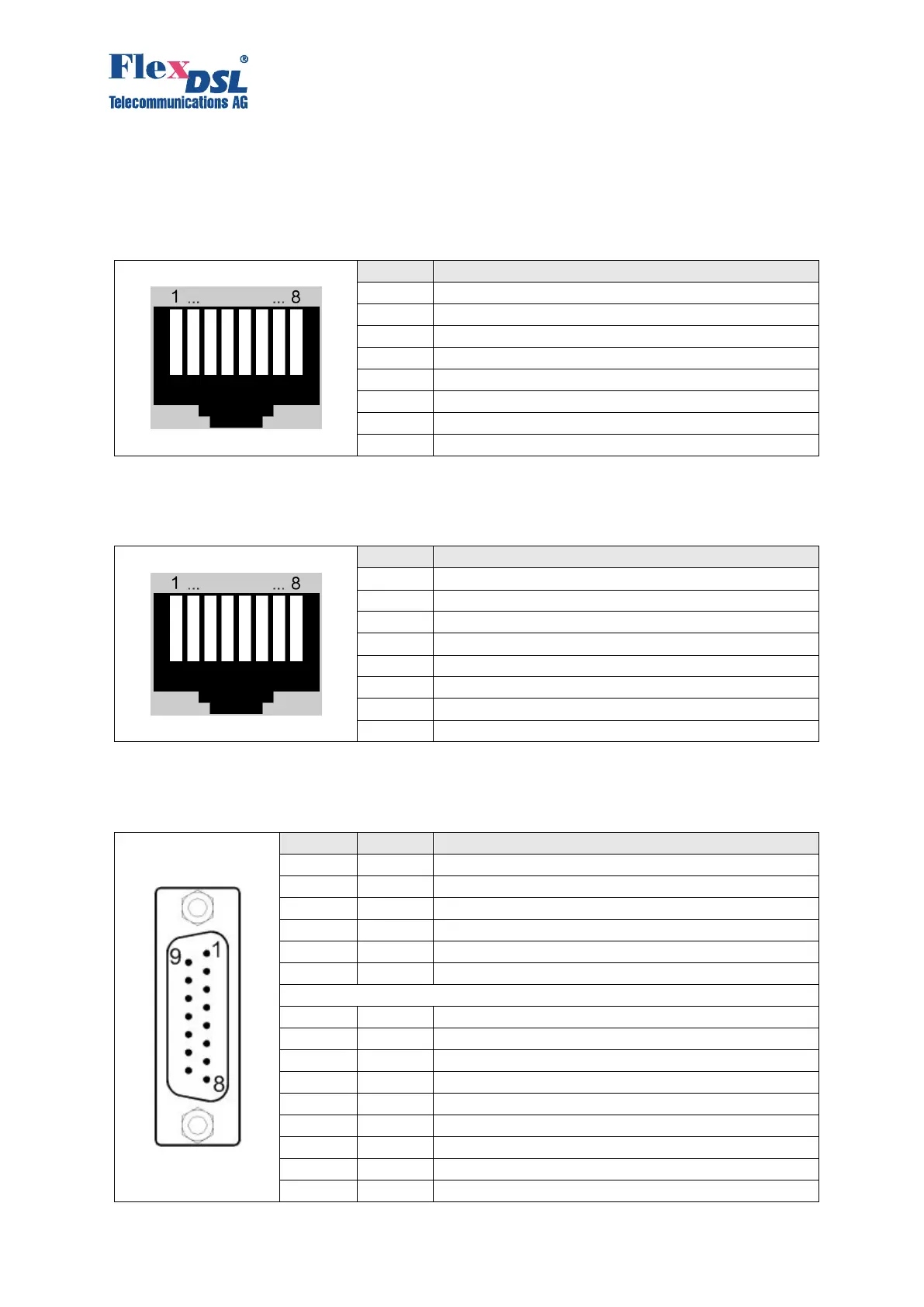

7.2 Connector Description
7.2.1 Ethernet Connector
Type – RJ-45 (female), 8 pins.
Pin No.
Description
1
Tx+ (transmit data)
2
Tx- (transmit data)
3
Rx+ (receive data)
4
NC (not used)
5
NC (not used)
6
Rx- (receive data)
7
NC (not used)
8
NC (not used)
7.2.2 SHDSL Connector
Type – RJ-45 (female), 8 pins.
Pin No.
Description
1
NC (not used)
2
NC (not used)
3
SHDSL interface B
4
SHDSL interface A
5
SHDSL interface A
6
SHDSL interface B
7
NC (not used)
8
NC (not used)
7.2.3 E1 120 Ohm Connector
Type – DB-15 (D-Sub, male), 15 pins.
Pin No.
Signal
Description
1
TX_1/2A
E1 Output → CH1/2 Wire A
9
TX_1/2B
E1 Output → CH1/2 Wire B
2
FPE
Functional Protective Earth (cable shield Out CH1/2)
3
RX_1/2A
E1 Input → CH1/2 Wire A
11
RX_1/2B
E1 Input → CH1/2 Wire B
4
FPE
Functional Protective Earth (cable shield Inp CH1/2)
Only for V93 &V96 units
6
TX_3/4A
E1 Output → CH3/4 Wire A
13
TX_3/4B
E1 Output → CH3/4 Wire B
7
FPE
Functional Protective Earth (cable shield Out_CH3/4)
8
RX_3/4A
E1Input → CH3/4 Wire A
15
RX_3/4B
E1Input → CH3/4 Wire B
5
FPE
Functional Protective Earth (cable shield Inp CH3/4)
10
NC
-
12
NC
-
14
NC
-
