User Manual LTU Orion 3
150

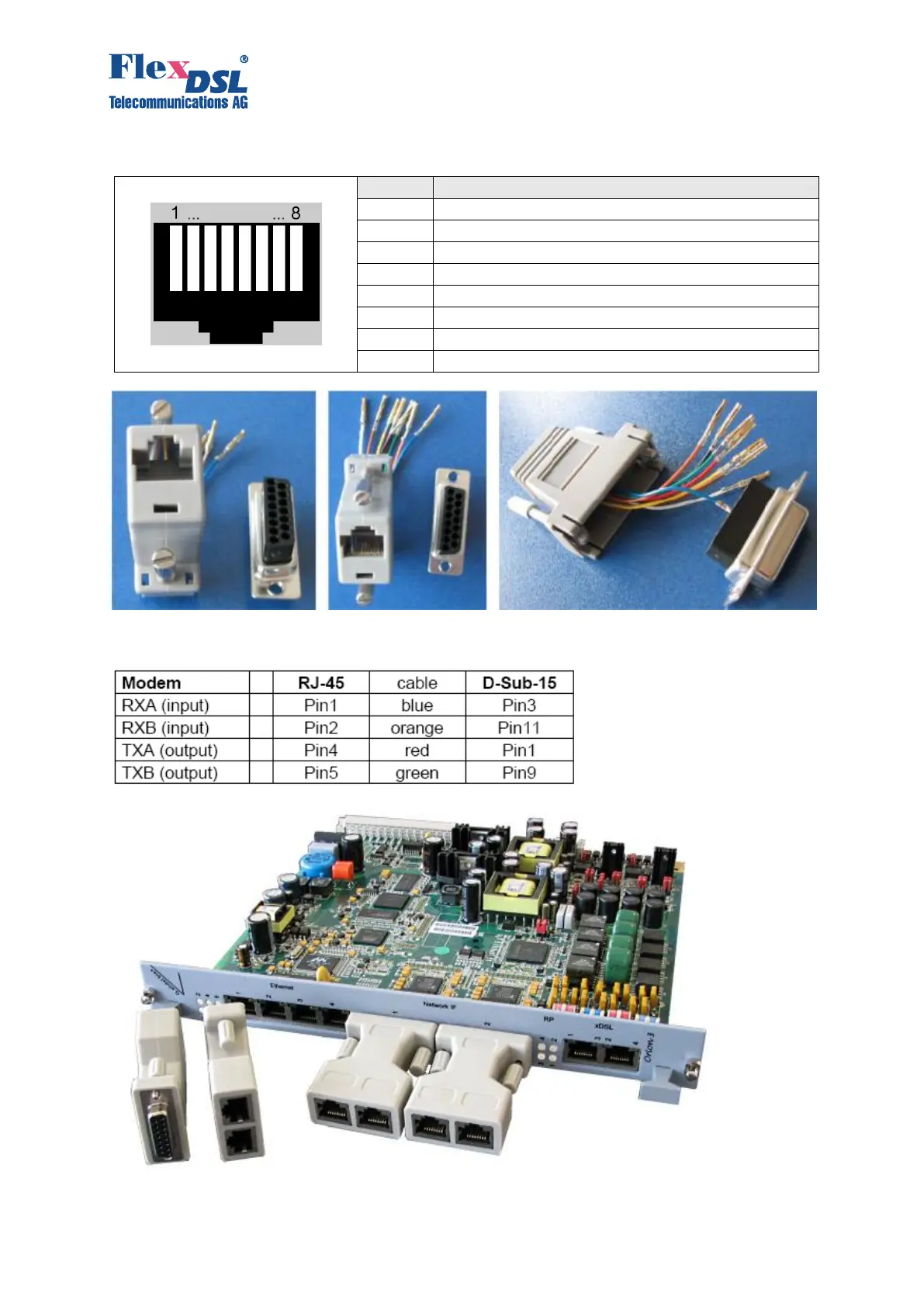

Type – RJ-45 (female), 8 pins.
Pin No.
Description
1
E1 Input → CH1/2 Wire A
2
E1 Input → CH1/2 Wire B
3
NC (not used)
4
E1 Output → CH1/2 Wire A
5
E1 Output → CH1/2 Wire B
6
NC (not used)
7
NC (not used)
8
NC (not used)
Please order FG-ADAPT-E1B/RJ45 to convert DB-15 connector to RJ-45 (female) connector.
Attention, per DB-15 only one RJ-45 is possible.
